CEV Boeing
Part of Orion CEV

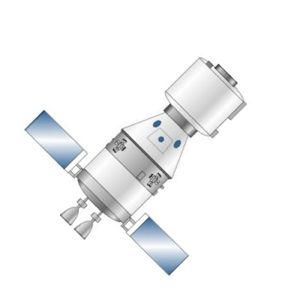

CEV Boeing Credit: © Mark Wade |
American manned spacecraft. Study 2012. Boeing's CEV consisted of a four-crew Apollo-type capsule, a service module, and a pressurized mission module.
Status: Study 2012. Gross mass: 20,000 kg (44,000 lb). Unfuelled mass: 10,500 kg (23,100 lb). Height: 10.50 m (34.40 ft). Diameter: 4.50 m (14.70 ft).
For single-launch earth orbit missions the mission module would be stowed beneath the CEV during launch, and docked to the CEV capsule using a transposition-and-dock maneuver after the spacecraft was put into earth orbit. For the lunar landing mission the mission module would be launched separately with the LSAM lunar lander and provide the lunar surface cabin. The CEV without the mission module would have a nominal total mass of 20 metric tons, with the Service Module having a mass fraction of 34.7% and burning liquid oxygen/methane propellants. Boeing, after numerous trade studies, found the L1 lunar scenario the best from every point of view - minimum delta-V, most applicability to later Mars exploration, and safest. Boeing's summary was devastating to NASA's preferred lunar orbit rendezvous concept, but did not seem to deter NASA from proceeding with that assumption for its project. Boeing's optimum moon mission was as follows:
- Earth Departure: A 20 metric ton payload man-rated launch vehicle would put the CEV into orbit (this could be an Atlas WBC Phase I; Delta IVM+(5,6); or a Shuttle-derived SDLV RSRM stick booster). A 45 metric ton payload Cargo LV unmanned launch vehicle would put other elements into orbit (orbit (this would require a payload fairing with a 6-m inside diameter, and could be an Atlas WBC Phase II; Delta IV-H(6.5,6); or an SDLV Side-mounted payload booster). The spacecraft would be assembled in a 400 km altitude, 28.5 deg inclination low earth orbit. The four-crew CEV would dock with the separately cargo-launched EDS Earth Departure Stage in LEO, then head for L1. Separately, an EDS with the LSAM lunar lander would also proceed to L1. The EDS and LSAM would use liquid oxygen/hydrogen propellants. Specific impulse would be 465 seconds for the EDS and 455 seconds for the LSAM; mass fractions would be 17.9% and 18.1%, respectively. 596 m/s of delta-V were allowed for docking and earth orbit operations, and 4264 m/s for injection towards L1, and 907 m/s for injection into L1.
- At L1, the vehicle would dock with the LSAM lander. The L1 option allowed global access to any point on the moon's surface, and full abort and return-to-earth capability at any time. Propellant transfer operations at L1 would allow use of a reusable, refuelable LSAM. Spare CEV's and LSAM's, propellant tanks, habitats, and other hardware could be cached at L1. Elements at L1 would have to make a station-keeping delta-V of 30 m/s per 100 days on-station. This created what Boeing called a 'spiral of extensibility', positioning hardware that could be used for later build-up of bases on the lunar surface, and then for expeditions for Mars, fueled by lunar-generated propellant. This was compared with NASA's LOR scheme, which involved throwing everything away,.
- From L1 to any point on the lunar surface, the LSAM would have to make a 907 m/s delta-V to move out of L1; 2199 m/s to land on the moon's surface, 2133 m/s from the surface back towards L1; and 999 m/s to brake into L1. A lunar base would be built up over time on the surface. Reusable base elements would include the LSAM, a habitat module, a 50 kW nuclear reactor, a lunar rover, EVA suits, and other ground elements. Eventually an ISRU plant could generate 15 metric tons of liquid oxygen/liquid hydrogen propellant per year, and 4.1 metric tons of water, sufficient to support two LSAM launches from the surface to L1 and back. It was assumed 243 two-crew EVA's would be made on the lunar surface per year. 20 metric tons of consumables and spares would be delivered to the base by two cargo flights/year.
- At L1, the crew would transfer back to the CEV. The CEV would make a delta-V of 1010 m/s for the return back to earth. A land landing would be nominal, with a water splashdown as a contingency.
Boeing studied 14 scenarios using L1 rendezvous, low-lunar orbit rendezvous, a combination low-lunar orbit rendezvous outbound/L1 rendezvous inbound, and direct launch from earth to the moon and back, with a variety of landed lunar surface payloads. They found that the lowest-cost-per-delivered mass and highest-capability alternative was the L1-rendezvous scenario with a 24 metric ton lunar surface payload. This would require assembly in low earth orbit of three EDS stages, the LSAM, and the CEV. Total mass in low earth orbit would be 197 metric tons, compared to 135 metric tons for Apollo. By comparison the most cost-effective other scenarios delivered only 18 metric tons to the lunar surface, and would cost 30% more, with total low-earth orbit mass being 175 metric tons for the best LOR scenario; 146 metric tons for the best LOR/L1R scenario; and 258 metric tons for the direct-landing scenario. Characteristics of the elements for the optimum L1 scenario were as follows:
- CEV: 26 metric tons maximum total mass, with a 5-metric ton mission module, 6.5 metric ton re-entry vehicle, and 14.5 metric ton service module with 9500 kg of lox/methane propellants. The mission module would be launched separately as part of the LSAM for the lunar mission. For earth orbit missions, much less propellant could be loaded in the SM and additional payload loaded into the mission module.
- LSAM: 34 metric tons total mass, including 28 metric tons of lox/lh2 propellants. On human lunar landing missions, the LSAM would carry the crew from L1 to the surface and back using a 5-metric ton mission module. For one-way cargo delivery missions, the LSAM would deliver 24 metric tons to the lunar surface. Specific impulse 455 seconds.
- EDS stages: each 45 metric tons total mass, including 38 metric tons of lox/lh2 propellants. Specific impulse 465 seconds.
Crew Size: 4. Spacecraft delta v: 1,600 m/s (5,200 ft/sec).
Family:
Lunar Bases,
Manned spacecraft,
Moon.
Country:
USA.
Agency:
NASA,
Boeing.
Photo Gallery

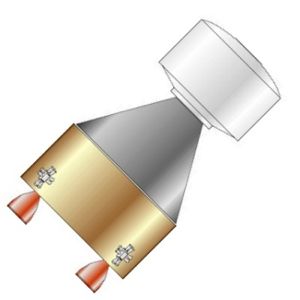

| CEV Boeing Credit: Mark Wade |
