KSR-I
Part of KSR Family

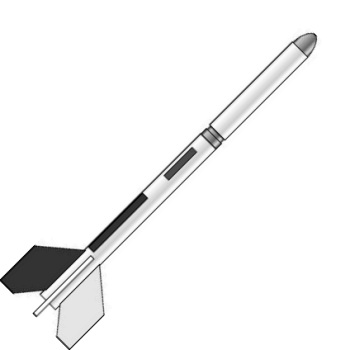

KSR-I
KSR-I
Credit: © Mark Wade
First South Korean sounding rocket, an unguided single solid propellant stage vehicle. Development began in 1990 and the rocket was flown two times in 1993.

AKA: Korea Sounding Rocket-I. Status: Retired 1993. First Launch: 1993-06-04. Last Launch: 1993-09-01. Number: 2 . Payload: 150 kg (330 lb). Thrust: 86.00 kN (19,333 lbf). Gross mass: 1,200 kg (2,600 lb). Height: 6.70 m (21.90 ft). Diameter: 0.42 m (1.37 ft). Apogee: 75 km (46 mi).

Development began in 1990, which was the first domestic single-stage unguided solid-propellant scientific rocket with a length of 6.7m, a diameter of 0.42m and lift-off weight of 1.2tons. KSR-I was launched on June 4 and September 1, 1993, respectively carrying an ultraviolet radiometer with the mission to measure the vertical ozone distribution in the stratosphere over the Korean peninsular. Temperature, acceleration and the other parameters were also measured to examine the performance of the rocket throughout the test flights. KSR-I had the payload capacity of 150kg and could reach the altitude of 75km.

Payload: 150 kg (330 lb) to a 75 km altitude.

Stage Data - KSR-I

  • Stage 1. 1 x KSR-1. Gross Mass: 1,000 kg (2,200 lb). Empty Mass: 100 kg (220 lb). Thrust (vac): 86.200 kN (19,379 lbf). Isp: 250 sec. Burn time: 25 sec. Isp(sl): 220 sec. Diameter: 0.42 m (1.37 ft). Span: 0.42 m (1.37 ft). Length: 4.70 m (15.40 ft). Propellants: Solid. No Engines: 1. Status: Hardware 2002. Comments: All values except thrust estimated.



Country: Korea South. Launch Sites: Anhueng. Stages: KSR-1. Agency: KARI.
Photo Gallery

KSR-IKSR-I


S Korean LVsS Korean LVs
South Korean indigneous rockets.
Credit: © Mark Wade



1993 June 4 - . Launch Site: Anhueng. LV Family: KSR. Launch Vehicle: KSR-I.
  • Ozone profile mission - . Nation: Korea South. Agency: KARI. Apogee: 39 km (24 mi). Ultraviolet radiometer to measure vertical ozone distribution in the stratosphere over the Korean peninsula. Rocket performance also monitored..

1993 September 1 - . Launch Site: Anhueng. LV Family: KSR. Launch Vehicle: KSR-I.
  • Ozone profile mission - . Nation: Korea South. Agency: KARI. Apogee: 49 km (30 mi). Ultraviolet radiometer to measure vertical ozone distribution in the stratosphere over the Korean peninsula. Rocket performance also monitored..
