LRE
LRE
LRE

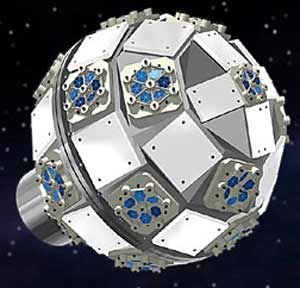

Credit: Manufacturer Image
Japanese earth geodetic satellite. The 87 kg Laser Ranging Experiment was a passive mirror ball of diameter 51 cm and carried 24 glass sheets and 126 prisms on its surface. Geodesy satellite for NASDA, Japan. Launched 2001.

Status: Operational 2001. First Launch: 2001-08-29. Last Launch: 2001-08-29. Number: 1 . Gross mass: 87 kg (191 lb). Height: 0.51 m (1.67 ft). Span: 0.51 m (1.67 ft).

It was ejected from the H-2A to ascertain the rocket's potential capability for precisely launching four-metric ton payloads with the help of light echoes from the LRE.


More at: LRE.

Family: Earth, Earth geodetic sat. Country: Japan. Launch Vehicles: H-II, H-IIA, H-IIA 202. Launch Sites: Tanegashima, Tanegashima Y. Bibliography: 2, 296, 11369.

2001 August 29 - . 07:00 GMT - . Launch Site: Tanegashima. Launch Complex: Tanegashima Y. LV Family: H-2. Launch Vehicle: H-IIA 202.
  • LRE - . Mass: 3,500 kg (7,700 lb). Nation: Japan. Agency: NASDA. Class: Earth. Type: Geodetic satellite. Spacecraft: LRE. USAF Sat Cat: 26898 . COSPAR: 2001-038A. Apogee: 33,306 km (20,695 mi). Perigee: 241 km (149 mi). Inclination: 28.5900 deg. Period: 584.29 min.

    Launch postponed from february, July 22 and August 25. First launch of the H-2A launch vehicle. A failure after all of the problems with the earlier H-2 version would probably have resulted in cancellation of the program. The Laser Ranging Experiment satellite carried 126 laser retro reflectors and separated from the second stage at 0739 GMT into its operational 'Molniya' type orbit. The eventual goal of H-2A was to launch geosynchronous spacecraft at costs comparable to those of other countries. The LRE remained in a simulated geosynchronous transfer orbit; laser reflections from it would be used to precisely ascertain the orbital injection accuracy of the H-2A.
