Star bus
Starbus-C
Starbus-C
American communications satellite bus. The Orbital Star bus was designed for reliable and robust performance in a variety of LEO and GEO missions.

AKA: Indostar;Mexsat;Orbital Star;Star-2 bus. Status: Operational 1997. First Launch: 1997-11-12. Last Launch: 2015-05-27. Number: 34 . Gross mass: 1,620 kg (3,570 lb).

Orbital's turn-key approach included the GEO satellite, launch services, ground stations, user systems and business support. The STAR GEO platform was designed for a 15-year mission life. STAR GEO Payload options included: C-, Ku-, Ka-, S-, Hybrid-band frequencies; payload power from 500 to 4,500 W; up to 42 transponders; shaped beams or spots with up to two deployable and one deck-mounted antenna systems.

Orbital's Star 1 bus and had a launch mass of 1298 kg. It carried a Thiokol Star 30 solid apogee motor and a set of station-keeping thrusters with 200 kg of propellant. The improved Star 2 satellite bus had a dry mass around 800 kg . It used an Orbital hydrazine/nitrogen tetroxide liquid apogee propulsion system with a 500N thrust apogee engine developed by Japan's IHI.

The Orbital Star bus was a flight-proven design that could deliver reliable and robust performance for a variety of LEO and GEO missions. Orbital's turn-key approach included the GEO satellite, launch services, ground stations, user systems and business support. The STAR GEO platform was designed for a 15-year mission life. STAR GEO Payload options included: C-, Ku-, Ka-, S-, Hybrid-band frequencies; payload power from 500 to 4,500 W; up to 42 transponders; shaped beams or spots with up to two deployable and one deck-mounted antenna systems.

A new era for Orbital began in November 1997 when its first GEO satellite, IndoStar-1, was launched aboard an Ariane 4 rocket from Kourou, French Guiana. Orbital built the IndoStar-1 satellite for Media Citra Indovision to deliver the first direct-to-home (DTH) satellite television to Indonesia, the world's fourth most populous county.

IndoStar-1 was the world's first commercial communications satellite to use S-band frequencies, which efficiently penetrated the atmosphere and provided high-quality transmissions to small-diameter antennas in regions that experience heavy rainfall such as Indonesia. Similar performance was not economically feasible with comparable Ku- or C-band DTH satellite systems since more power was required in these bands to penetrate the moist atmosphere.

Under the $175 million contract, Orbital served as the prime contractor for the turn-key system, including the space, ground and user segments. Specifically, Orbital provided:

In early 2001, Orbital firmly established itself as a major U.S. GEO satellite supplier with a contract from PanAmSat Corporation, which owned and operated one of the world's largest private fleets of commercial GEO communications satellites. Orbital was selected to supply one C-band GEO satellite designated Galaxy XII to be located at 72 deg W longitude. In late 2001 PanAmSat exercised an option for two additional C-band spacecraft. The satellites were to distribute entertainment and information to cable television systems, TV broadcast affiliates, direct-to-home TV operators, Internet service providers, telecommunications companies and corporations.

Characteristics of this version of the Star bus were:


More at: Star bus.

Subtopics

Indostar 1 (Cakrawarta 1) Null

BSat 2a, 2b Communication satellite built by Orbital Sciences Corporation (OSC) for Broadcasting Satellite System Corporation (B-SAT), Japan. Launched 2001. Used the Star-1 bus.

N-Star c Communication satellite built by Lockheed Martin (prime), Orbital Sciences Corporation (OSC) (Bus) for NTT-DoCoMo, Japan. Launched 2002. Used the Star-2 Bus bus.

Galaxy 12, 14, 15 Communication satellite built by Orbital Sciences Corporation (OSC) for PanAmSat, USA. Launched 2003 - 2005. Used the Star-2 Bus bus.

BSat 2c Communication satellite built by Orbital Sciences Corporation (OSC) for Broadcasting Satellite System Corporation (B-SAT), Japan. Launched 2003. Used the Star-1 bus.

Galaxy 15 Communication satellite built by Orbital Sciences Corporation (OSC) for PanAmSat, USA. Launched 2005. Used the Star-2 Bus bus.

Telkom 2 Communication satellite built by Orbital Sciences Corporation (OSC) for PT Telekomunikasi Indonesia (PT Telkom), Indonesia. Launched 2005. Used the Star-2 Bus bus.

Optus D1 Communication satellite built by Orbital Sciences Corporation (OSC) for Optus Networks, Pty., Australia. Launched 2006. Used the Star-2.4 Bus bus.

Intelsat 11 Communication satellite built by Orbital Sciences Corporation (OSC) for PanAmSat => Intelsat, USA. Launched 2007. Used the Star-2 Bus bus.

Optus D2, D3 Communication satellite built by Orbital Sciences Corporation (OSC) for Optus Networks, Pty., Australia. Launched 2007 - 2009. Used the Star-2.4 Bus bus.

Horizons 2 Communication satellite built by Orbital Sciences Corporation (OSC) for PanAmSat & JSat, USA. Launched 2007. Used the Star-2 Bus bus.

Thor 5 Communication satellite built by Orbital Sciences Corporation (OSC) for Telenor, Norway. Launched 2008. Used the Star-2 Bus bus.

AMC 21 Communication satellite built by Alcatel Alenia Space (prime), Orbital Sciences Corporation (OSC) (bus) for SES Americom, USA. Launched 2008. Used the Star-2 Bus bus.

NSS 9 Communication satellite built by Orbital Sciences Corporation (OSC) for SES New Skies, Netherlands. Launched 2009. Used the Star-2 Bus bus.

MEASAT 3a Communication satellite built by Orbital Sciences Corporation (OSC) for MEASAT Satellite Systems Sdn. Bhd., Malaysia. Launched 2009. Used the Star-2 Bus bus.

Intelsat 15 (JCSat 85) Null

Intelsat 16 Communication satellite built by Orbital Sciences Corporation (OSC) for PanAmSat => Intelsat, USA. Launched 2010. Used the Star-2.4 Bus bus.

SES 1, 2, 3 Communication satellite built by Orbital Sciences Corporation (OSC) for SES Americom => SES World Skies, USA. Launched 2010 - 2011. Used the Star-2.4 Bus bus.

Koreasat 6 (Olleh 1) Null

New Dawn / Intelsat 28 Null

Intelsat 18 Communication satellite built by Orbital Sciences Corporation (OSC) for Intelsat, USA. Launched 2011. Used the Star-2.4 Bus bus.

HYLAS 2 Communication satellite built by Orbital Sciences Corporation (OSC) for Avanti Communications Group plc, UK. Launched 2012. Used the Star-2.4 Bus bus.

Intelsat 23 Communication satellite built by Orbital Sciences Corporation (OSC) for Intelsat, USA. Launched 2012. Used the Star-2.4E Bus bus.

Star One C3 Communication satellite built by Orbital Sciences Corporation (OSC) for Star One (EMBRATEL), Bolivarsat, Brazil. Launched 2012. Used the Star-2.4 Bus bus.

MEXSAT 3 (Bicentenario) Null

Azerspace/Africasat 1a Null

OHO 1 Communication satellite built by Thales Alenia Space (payload), Orbital Sciences Corporation (OSC) (bus) for OverHorizon. Used the Star-2.3 Bus bus.

Family: Communications, Geosynchronous orbit. Country: USA. Engines: BT-4. Launch Vehicles: R-7, Proton, Ariane, Ariane 44L, Ariane 5, Ariane 5G, Proton-M/Briz-M, Soyuz-FG, Ariane 5ECA, Ariane 5GS, Zenit-3SLB, Falcon 9. Projects: Galaxy, Intelsat. Launch Sites: Baikonur, Baikonur LC31, Cape Canaveral LC40, Baikonur LC81/24, Kourou, Baikonur LC200/39, Baikonur LC45/1, Kourou ELA2, Kourou ELA3. Agency: SES, OSC, BSAT, Indostar. Bibliography: 2, 296, 4, 552, 554, 13202, 13203, 13204, 13205, 13206, 13207, 13208, 13209, 13210, 13211, 13212, 13213, 13214, 13215.
Photo Gallery

Amazonas 4AAmazonas 4A
Credit: Manufacturer Image


AMC 21AMC 21
Credit: Manufacturer Image


SES 1SES 1
Credit: Manufacturer Image


Starbus / N-StarStarbus / N-Star


Azerspace/Africasat Azerspace/Africasat
Credit: Manufacturer Image


BSAT-2aBSAT-2a
Credit: Manufacturer Image


BSAT-2cBSAT-2c
Credit: Manufacturer Image


Galaxy 12Galaxy 12
Credit: Manufacturer Image


Galaxy 15Galaxy 15
Credit: Manufacturer Image


Horizons 2Horizons 2
Credit: Manufacturer Image


Hylas 2Hylas 2
Credit: Manufacturer Image


Cakrawarta 1Cakrawarta 1
Credit: Manufacturer Image


Intelsat IS-15Intelsat IS-15
Credit: Manufacturer Image


Intelsat 16Intelsat 16
Credit: Manufacturer Image


Intelsat 18Intelsat 18
Credit: Manufacturer Image


Intelsat IS-23Intelsat IS-23
Credit: Manufacturer Image


Koreasat 6Koreasat 6
Credit: Manufacturer Image

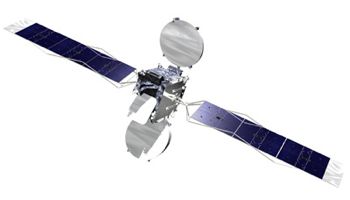

Measat 3AMeasat 3A
Credit: Manufacturer Image


MEXSAT 3MEXSAT 3
Credit: Manufacturer Image


New Dawn → InteNew Dawn → Inte
Credit: Manufacturer Image


NSS 9NSS 9
Credit: Manufacturer Image


NStar cNStar c
Credit: Manufacturer Image


OHO 1OHO 1
Credit: Manufacturer Image


Optus D2Optus D2
Credit: Manufacturer Image


Optus D1Optus D1
Credit: Manufacturer Image


Intelsat IS-11Intelsat IS-11
Credit: Manufacturer Image


SES-8SES-8
Credit: Manufacturer Image


Star One C3Star One C3
Credit: Manufacturer Image


Telkom 2Telkom 2
Credit: Manufacturer Image


Thor 5Thor 5
Credit: Manufacturer Image



1997 November 12 - . 21:48 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA2. LV Family: Ariane. Launch Vehicle: Ariane 44L.
2001 March 8 - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5G.
2001 July 12 - . 21:58 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5G.
2002 July 5 - . 23:22 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5G.
2003 April 9 - . 22:52 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5G.
2003 June 11 - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5G.
2005 August 13 - . 23:28 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC31. LV Family: R-7. Launch Vehicle: Soyuz-FG.
2005 October 13 - . 22:32 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5GS.
2005 November 16 - . 23:46 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
2006 October 13 - . 20:56 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
2007 October 5 - . 22:02 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5GS.
2007 December 21 - . 21:41 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5GS.
2008 February 11 - . 11:34 GMT - . Launch Site: Baikonur. LV Family: Proton. Launch Vehicle: Proton-M/Briz-M.
2008 August 14 - . 20:44 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
2009 February 11 - . 22:09 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
2009 June 21 - . 21:50 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC45/1. LV Family: Zenit. Launch Vehicle: Zenit-3SLB.
2009 August 21 - . 22:09 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
2009 November 30 - . 21:00 GMT - . Launch Site: Baikonur. LV Family: Zenit. Launch Vehicle: Zenit-3SLB.
2010 February 12 - . 00:39 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC200/39. Launch Pad: LC200/39. LV Family: Proton. Launch Vehicle: Proton-M/Briz-M.
2010 April 24 - . 11:19 GMT - . Launch Site: Baikonur. LV Family: Proton. Launch Vehicle: Proton-M/Briz-M.
2010 December 29 - . 21:27 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
2011 April 22 - . 21:37 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
2011 July 15 - . 23:16 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC200/39. LV Family: Proton. Launch Vehicle: Proton-M/Briz-M.
2011 September 21 - . 21:38 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
2011 October 5 - . 21:00 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC45/1. LV Family: Zenit. Launch Vehicle: Zenit-3SLB.
2012 August 2 - . 20:54 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
2012 October 14 - . 08:37 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC81/24. LV Family: Proton. Launch Vehicle: Proton-M/Briz-M.
2012 November 10 - . 00:00 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
2012 December 19 - . 21:49 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
2013 February 7 - . 21:36 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
2013 December 3 - . 22:41 GMT - . Launch Site: Cape Canaveral. Launch Complex: Cape Canaveral LC40. Launch Pad: SLC40. LV Family: Falcon. Launch Vehicle: Falcon 9.
2014 March 22 - . 22:04 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
2015 May 27 - . 21:16 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
