Ariane 5 EC-B
CLICK HERE FOR CURRENT AND MORE COMPLETE INFORMATION
ON THIS TOPIC AT OUR PARTNER SITE

Part of Ariane 5 Family

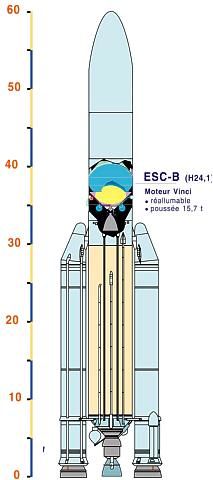

Ariane 5 ESC-B
Ariane 5 ESC-B
The ultimate evolved Ariane 5 funded as of the end of the millennium. A larger LOx/LH2 upper stage using the Vinci motor in place of the HM7B. The core remains the same. Result is an increase in GTO payload from 10.5 metric tons to 12.0 metric tons.

Status: In development. Payload: 12,000 kg (26,000 lb). Thrust: 15,360.00 kN (3,453,060 lbf). Gross mass: 790,000 kg (1,740,000 lb). Height: 60.00 m (196.00 ft). Diameter: 5.40 m (17.70 ft).

Payload: 12,000 kg (26,000 lb) to a GTO, 7 deg.

Stage Data - Ariane 5 EC-B

  • Stage 0. 2 x Ariane 5 EAP. Gross Mass: 278,330 kg (613,610 lb). Empty Mass: 38,200 kg (84,200 lb). Thrust (vac): 6,470.000 kN (1,454,510 lbf). Isp: 275 sec. Burn time: 130 sec. Isp(sl): 250 sec. Diameter: 3.05 m (10.00 ft). Span: 3.05 m (10.00 ft). Length: 31.60 m (103.60 ft). Propellants: Solid. No Engines: 1. Engine: P241. Other designations: P241. Status: In Production. Comments: Increased propellant loading (+2.43 metric tons), lighter welded case (-1.6 metric tons) compared to earlier versions.
  • Stage 1. 1 x Ariane 5 EPC. Gross Mass: 186,000 kg (410,000 lb). Empty Mass: 12,700 kg (27,900 lb). Thrust (vac): 1,114.000 kN (250,437 lbf). Isp: 434 sec. Burn time: 650 sec. Isp(sl): 335 sec. Diameter: 5.46 m (17.91 ft). Span: 5.46 m (17.91 ft). Length: 30.50 m (100.00 ft). Propellants: Lox/LH2. No Engines: 1. Engine: Vulcain 2. Other designations: H173. Status: In Production. Comments: 15.2 metric tons increased propellant by moving liquid oxygen bulkhead.
  • Stage 2. 1 x Ariane 5 ESC B. Gross Mass: 27,500 kg (60,600 lb). Empty Mass: 3,400 kg (7,400 lb). Thrust (vac): 153.900 kN (34,598 lbf). Isp: 467 sec. Burn time: 700 sec. Diameter: 5.46 m (17.91 ft). Span: 5.46 m (17.91 ft). Length: 10.00 m (32.00 ft). Propellants: Lox/LH2. No Engines: 1. Engine: Vinci. Status: In production. Comments: New upper stage for Ariane 5.


More at: Ariane 5 EC-B.

Family: orbital launch vehicle. Country: France. Stages: Ariane 5-0 P241, Ariane 5-1 EPC, Ariane 5-2 ESC B. Agency: EADS.
