Badr

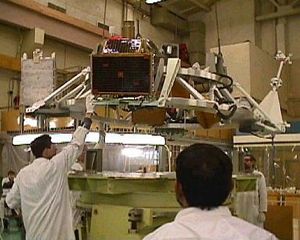

Badr B2
Pakistani communications technology satellite. 3 launches, 1990.07.16 (Badr-A) to 2008.07.07 (Badr B). Pakistani experimental series with a variety of payloads.

Badr B was built in collaboration with the English company SIL and carried an Earth imager - the first step toward an indigenous military surveillance capability.

Gross mass: 52 kg (114 lb).
First Launch: 1990.07.16.
Last Launch: 2008.07.07.
Number: 3 .

More... - Chronology...


Associated Countries
See also
  • Ariane 5 The Ariane 5 was a completely new design, unrelated to the earlier Ariane 1 to 4. It consisted of a single-engine Lox/LH2 core stage flanked by two solid rocket boosters. Preparatory work began in 1984. Full scale development began in 1988 and cost $ 8 billion. The design was sized for the Hermes manned spaceplane, later cancelled. This resulted in the booster being a bit too large for the main commercial payload, geosynchronous communications satellites. As a result, development of an uprated version capable of launching two such satellites at a time was funded in 2000. More...
  • CZ China's first ICBM, the DF-5, first flew in 1971. It was a two-stage storable-propellant rocket in the same class as the American Titan, the Russian R-36, or the European Ariane. The DF-5 spawned a long series of Long March ("Chang Zheng") CZ-2, CZ-3, and CZ-4 launch vehicles. These used cryogenic engines for upper stages and liquid-propellant strap-on motors to create a family of 12 Long-March rocket configurations capable of placing up to 9,200 kg into orbit. In 2000 China began development of a new generation of expendable launch vehicles using non-toxic, high-performance propellants with supposedly lower operating costs. However these encountered development delays, and it seemed the reliable Long March series of rockets would continue in operational use for nearly fifty years before being replaced. More...
  • Zenit Zenit was to be a modular new generation medium Soviet launch vehicle, replacing the various ICBM-derived launch vehicles in use since the 1960's (Tsiklon and Soyuz). A version of the first stage was used as strap-ons for the cancelled Energia heavy booster. But it was built by Yuzhnoye in the Ukraine; when the Soviet Union broke up planned large-scale production for the Soviet military was abandoned (Angara development was begun as an indigenous alternative). Launch pads were completed only at Baikonur; those at Plesetsk were never finished and are planned to be completed as Angara pads. However the vehicle found new life as a commercial launch vehicle, launched from a sea platform by an American/Ukrainian consortium. More...

Associated Launch Vehicles
  • CZ Chinese orbital launch vehicle. China's first ICBM, the DF-5, first flew in 1971. It was a two-stage storable-propellant rocket in the same class as the American Titan, the Russian R-36, or the European Ariane. The DF-5 spawned a long series of Long March ("Chang Zheng") CZ-2, CZ-3, and CZ-4 launch vehicles. These used cryogenic engines for upper stages and liquid-propellant strap-on motors to create a family of 12 Long-March rocket configurations capable of placing up to 9,200 kg into orbit. In 2000 China began development of a new generation of expendable launch vehicles using non-toxic, high-performance propellants with supposedly lower operating costs. However these encountered development delays, and it seemed the reliable Long March series of rockets would continue in operational use for nearly fifty years before being replaced. More...
  • Zenit Zenit was to be a modular new generation medium Soviet launch vehicle, replacing the various ICBM-derived launch vehicles in use since the 1960's (Tsiklon and Soyuz). A version of the first stage was used as strap-ons for the cancelled Energia heavy booster. But it was built by Yuzhnoye in the Ukraine; when the Soviet Union broke up planned large-scale production for the Soviet military was abandoned (Angara development was begun as an indigenous alternative). Launch pads were completed only at Baikonur; those at Plesetsk were never finished and are planned to be completed as Angara pads. However the vehicle found new life as a commercial launch vehicle, launched from a sea platform by an American/Ukrainian consortium. More...
  • Zenit-2 Ukrainian orbital launch vehicle. Two-stage version that continued to be used for launch of Russian military satellites tailored to it after the fall of the Soviet Union. More...
  • CZ-2E Chinese orbital launch vehicle. The CZ-2E added four liquid rocket booster strap-ons to the basic CZ-2 core to achieve a low earth orbit payload capability approaching the Russian Proton, US Titan, or European Ariane rockets. The Long March 2E had a maximum payload capability of 9,500 kg to low earth orbit. More...
  • Ariane 5ECA French orbital launch vehicle, first version of the evolved Ariane 5. The solid booster motors propellant load was increased by 2.43 tonnes and the case was welded, for a weight saving in dry mass of 1.9 tonnes. The core was powered by an improved Vulcain 2 engine. The oxygen-rich cycle of the engine allowed the oxygen bulkhead to be moved within the stage, resulting in a 15.2 tonne increase in propellant in the core. A new Lox/LH2 upper stage, using the HM7B engine and oxygen tank from the Ariane 4 series, replaced the storable propellant EPS stage of earlier models. The result was an increase in payload to geoscynchronous transfer orbit from 6 tonnes to 10.5 tonnes. More...

Associated Manufacturers and Agencies
  • Suparco Pakistani manufacturer of rockets and spacecraft. Pakistan Space and Upper Atmosphere Research Commission, Pakistan. More...
  • SIL Pakistani manufacturer of spacecraft. Pakistan, Pakistan. More...

Bibliography
  • McDowell, Jonathan, Jonathan's Space Home Page (launch records), Harvard University, 1997-present. Web Address when accessed: here.
  • JPL Mission and Spacecraft Library, Jet Propulsion Laboratory, 1997. Web Address when accessed: here.
  • McDowell, Jonathan, Launch Log, October 1998. Web Address when accessed: here.
  • National Space Science Center Planetary Page, As of 19 February 1999.. Web Address when accessed: here.
  • NASA/GSFC Orbital Information Group Website, Web Address when accessed: here.
  • Space-Launcher.com, Orbital Report News Agency. Web Address when accessed: here.

Associated Launch Sites
  • Baikonur Russia's largest cosmodrome, the only one used for manned launches and with facilities for the larger Proton, N1, and Energia launch vehicles. The spaceport ended up on foreign soil after the break-up of Soviet Union. The official designations NIIP-5 and GIK-5 are used in official Soviet histories. It was also universally referred to as Tyuratam by both Soviet military staff and engineers, and the US intelligence agencies. Since the dissolution of the Soviet Union the Russian Federation has insisted on continued use of the old Soviet 'public' name of Baikonur. In its Kazakh (Kazak) version this is rendered Baykonur. More...
  • Kourou After the agreement with newly independent Algeria for France to evacuate their launch sites in that country, a location near Biscarosse was selected for French missile testing. However since only launches westwards across the Bay of Biscay could be made from this site, it was unsuitable for France's Diamant orbital launch vehicle. After reviewing 14 potential sites, a location in the South American French colony of Guiana was selected. This would allow over-water launches to a tremendous range of possible orbital inclinations -- from -100.5 deg to 1.5 deg. Being near the equator, it would provide the maximum assist from the earth's rotation for launches into equatorial orbits. The decision was formalized in April 1964 and in July 1966 ELDO chose the site for future launches of the Europa II launch vehicle. More...
  • Xichang China's launch site for geosynchronous orbit launches. Xichang Satellite Launch Centre is situated in Xichang, Sichuan Province, south-western China. The launch pad is at 102.0 degrees East and 28.2 degrees North. The head office of the launch centre is located in Xichang City, about 65 kilometers away. Xichang Airport is 50 km away. A dedicated railway and highway lead directly to the launch site. More...

Badr Chronology


1990 July 16 - . 00:40 GMT - . Launch Site: Xichang. Launch Complex: Xichang LC2. LV Family: CZ. Launch Vehicle: CZ-2E. LV Configuration: Chang Zheng 2E CZ2E-1 (23).
  • Badr-A - . Payload: Badr 1 + R&D. Mass: 52 kg (114 lb). Nation: Pakistan. Agency: Suparco. Class: Technology. Type: Communications technology satellite. Spacecraft: Badr. Decay Date: 1990-12-08 . USAF Sat Cat: 20685 . COSPAR: 1990-059A. Apogee: 988 km (613 mi). Perigee: 208 km (129 mi). Inclination: 28.5000 deg. Period: 96.70 min. Summary: First launch of new Chinese launch vehicle. Experimental Pakistani payload..

2001 December 10 - . 17:18 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC45/1. LV Family: Zenit. Launch Vehicle: Zenit-2. LV Configuration: Zenit-2 19L (1381573091).
  • Badr B - . Mass: 70 kg (154 lb). Nation: Pakistan. Agency: RAKA. Manufacturer: SIL. Class: Surveillance. Type: Military surveillance satellite. Spacecraft: Badr. USAF Sat Cat: 27003 . COSPAR: 2001-056C. Apogee: 1,014 km (630 mi). Perigee: 985 km (612 mi). Inclination: 99.2000 deg. Period: 105.10 min. Summary: Badr B was Pakistan's second satellite. Built in collaboration with the English company SIL, it had a mass of 70 kg and carried an Earth imager..

2008 July 7 - . 21:47 GMT - . Launch Site: Kourou. Launch Complex: Kourou ELA3. LV Family: Ariane 5. Launch Vehicle: Ariane 5ECA.
  • Badr 6 - . Nation: Pakistan. Agency: Arianespace. Class: Communications. Type: Military communications satellite. Spacecraft: Badr. USAF Sat Cat: 33154 . COSPAR: 2008-034B. Apogee: 35,801 km (22,245 mi). Perigee: 35,770 km (22,220 mi). Inclination: 0.1000 deg. Period: 1,436.10 min.
