DS-U3-S

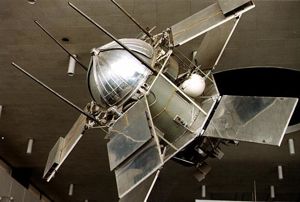

DS-U3-S satellite
DS-U3-S satellite (Cosmos 166). Other satellites in the DS-U3 series had a similar appearance.
Credit: © Mark Wade
DS-U3-S
Credit: Yuzhnoye
Ukrainian solar satellite. 2 launches, 1967.06.16 (Cosmos 166) to 1968.07.05 (Cosmos 230). Specialized orbital solar observatory for measuring solar rays in multiple spectral zones.

Gross mass: 360 kg (790 lb).
First Launch: 1967.06.16.
Last Launch: 1968.07.05.
Number: 2 .

More... - Chronology...


Associated Countries
See also
  • DS The DS ('Dnepropetrovsk Sputnik') small satellite bus was developed by Yangel's OKB-586 / KB Yuzhnoye in the Ukraine for launch by the same bureau's Kosmos launch vehicles. They were used for a wide range of military and scientific research; component proving tests; and as radar, ASAT, and ABM targets. More...
  • Kosmos 2 In 1960 the Soviet government decreed development of a lightweight launch vehicle for launch of payloads not requiring R-7 family of boosters. A modification of the R-12 IRBM was selected as the first stage; a new high-performance second stage was developed using a unique Lox/UDMH propellant combination. After two failures, the first successful flight was on March 16, 1962. More...

Associated Launch Vehicles
  • Kosmos 2 Ukrainian orbital launch vehicle. In 1960 the Soviet government decreed development of a lightweight launch vehicle for launch of payloads not requiring R-7 family of boosters. A modification of the R-12 IRBM was selected as the first stage; a new high-performance second stage was developed using a unique Lox/UDMH propellant combination. After two failures, the first successful flight was on March 16, 1962. More...
  • Kosmos 11K63 Ukrainian orbital launch vehicle. Series production version of satellite launcher based on Yangel R-12 IRBM. Succeeded 63S1M prototype from 1965, using same 'Dvina' launch complex. From March 16, 1967 orbital launches from Plesetsk were from the purpose-built 'Raduga' launch complex LC133. Total of 123 launches, of which 8 were failures. More...

Associated Manufacturers and Agencies
  • Yuzhnoye Ukrainian manufacturer of rockets, spacecraft, and rocket engines. Yangel Design Bureau, Dnepropetrovsk, Ukraine. More...

Associated Programs
  • DS DS ('Dnepropetrovsk Sputnik') were small satellites built by Yangel's OKB-586 / KB Yuzhnoye in the Ukraine for launch by the same KB's Kosmos launch vehicles. They were used for a wide range of military and scientific research and component proving tests. More...

Bibliography
  • McDowell, Jonathan, Jonathan's Space Home Page (launch records), Harvard University, 1997-present. Web Address when accessed: here.
  • JPL Mission and Spacecraft Library, Jet Propulsion Laboratory, 1997. Web Address when accessed: here.
  • Agapov, V, "K zapusku pervovo ISZ serii 'DS'", Novosti Kosmonavtiki, 1997, Issue 6.

Associated Launch Sites
  • Kapustin Yar Russia's first missile test range and used for satellite launches of smaller Kosmos vehicles. V-2's launched from here in 1946 were the first ballistic missiles fired on Soviet territory. It was greatly expanded as the test site for innumerable Soviet intermediate and short range missile projects in the 1950's.. Kapustin Year was also headquarters of the first operational R-1/R-2 units, 1950-1953, and later a base for 12 operational R-14 missile launchers. Kapustin Yar was known to have been used for over 3519 major launches from 1946 to 2007. More...

DS-U3-S Chronology


1967 June 16 - . 04:44 GMT - . Launch Site: Kapustin Yar. Launch Complex: Kapustin Yar LC86/1. LV Family: Kosmos 2. Launch Vehicle: Kosmos 11K63.
  • Cosmos 166 - . Payload: DS-U3-S s/n 1. Mass: 357 kg (787 lb). Nation: USSR. Agency: MO. Program: DS. Class: Astronomy. Type: Solar astronomy satellite. Spacecraft: DS-U3-S. Completed Operations Date: 1967-09-26 . Decay Date: 1967-10-25 . USAF Sat Cat: 2848 . COSPAR: 1967-061A. Apogee: 555 km (344 mi). Perigee: 288 km (178 mi). Inclination: 48.4000 deg. Period: 93.00 min. Summary: Specialized orbital solar observatory for measuring solar rays in mulitple spectral zones..

1968 July 5 - . 06:59 GMT - . Launch Site: Kapustin Yar. Launch Complex: Kapustin Yar LC86/4. LV Family: Kosmos 2. Launch Vehicle: Kosmos 11K63.
  • Cosmos 230 - . Payload: DS-U3-S s/n 2. Mass: 367 kg (809 lb). Nation: USSR. Agency: MO. Program: DS. Class: Astronomy. Type: Solar astronomy satellite. Spacecraft: DS-U3-S. Completed Operations Date: 1968-11-02 . Decay Date: 1968-11-02 . USAF Sat Cat: 3308 . COSPAR: 1968-056A. Apogee: 546 km (339 mi). Perigee: 287 km (178 mi). Inclination: 48.4000 deg. Period: 92.90 min. Summary: Specialized orbital solar observatory for measuring solar rays in mulitple spectral zones..
