Kvant



Kvant Cutaway
The Kvant module was the first addition to the Mir core. The module is divided into a pressurised laboratory compartment and a non-pressurised equipment compartment. The laboratory compartment is further divided into an instrumentation area and a living area, which are separated by an interior partition.
Kvant / SM Jettison
Picture Kvant showing SM jettison 2
Credit: RKK Energia
Kvant Large
Credit: © Mark Wade
Kvant
Credit: © Mark Wade
Kvant / SM Jettison
Picture Kvant showing SM jettison 1
Credit: RKK Energia
Cutaway of Kvant
Cutaway of Kvant illustrating service module that separated after docking with Mir.
Credit: RKK Energia

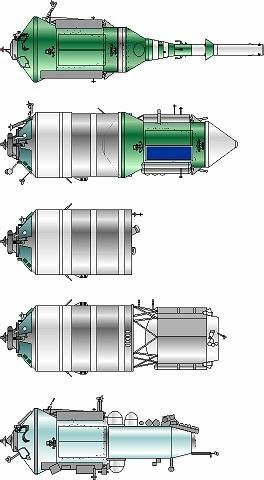

37K Comparison
Competing concepts for Mir space station modules. From top: Chelomei's TKS module from Almaz, consisting of the FGB tug, VA re-entry capsule, and abort rocket; 37K Kvant laboratory module, with FGB tug as used to dock with aft port of Mir; 37K Kvant laboratory after docking; NPO Energia design for follow-on 37K modules (cancelled); FGB-derived modules actually used.
Credit: © Mark Wade
Kvant
Credit: © Mark Wade
Russian manned space station. One launch, 1987.03.31 (Kvant 1). The Kvant spacecraft represented the first use of a new kind of Soviet space station module, designated 37K.

An order authorizing the beginning of development was issued on 17 September 1979. The basic 37K design consisted of a 4.2 m diameter pressurized cylinder with a docking port at the forward end. It was not equipped with its own propulsion system. The original authorization was for a total of eight 37K's of various configurations:

  • One experimental 37KE (using a surplus FGB module of the cancelled Chelomei TKS manned ferry as a tug) which would be docked to the front port of the Salyut 7 space station.

  • Four 37KS modules for Mir. These would be delivered and docked to the station by a new lighter weight FGO tug.
  • Three 37KB modules. These would be carried in the payload bay of the Buran space shuttle. They could remain attached to the bay or (modified to the 37KBI configuration) be docked to the Mir or Mir-2 space stations using the Buran manipulator arm.

The 37KE was designated Kvant and was equipped with an astrophysics payload. It also used the Salyut-5B digital flight control computer and Gyrodyne flywheel orientation system developed for Almaz. As the module neared completion Salyut 7 experienced numerous technical problems and Kvant was retargeted for a docking with Mir. But at that time Mir was planned to be in a 65 degree orbit, and Kvant was 800 kg too heavy for the Proton launch vehicle to place in such an orbit. In January 1985 Mir was changed to a 51.6 degree orbit, which solved one problem. But now it was planned that Kvant would dock with the rear port of Mir, requiring the addition of lines to conduct rocket propellant from Progress tanker spacecraft to Mir's storage tanks. This increased weigh again, forcing the FGB to have it's propellant load reduced to 60% in the high pressure tanks and empty low pressure tanks. Still, at 22,797 kg, Kvant was the heaviest payload ever lofted by Proton, requiring special custom modifications to its launch vehicle.

Kvant was originally to be launched in late 1986 but problems with its scientific payload resulted in it spending 14 months at the spacecraft integration hall at Korolev. Software development delays with the Salyut-5B resulted in it being deleted as well (it was later delivered to Mir with the Kvant-2 module). Finally it was delivered to Baikonur in November 1986. Following a successful launch it managed to dock to Mir on April 12, 1987, on the second attempt after the crew removed a trash bag from the docking collar in a space walk. The FGB tug, its work done, then backed away from the station. But the maneuvers had cut into its already-reduced propellant supply. Unable to deorbit itself to a controlled burn-up in the atmosphere, the FGB was instead commanded to boost itself into a storage orbit 40 km above Mir. From there its orbit decayed until it made an uncontrolled re-entry on 25 August 1988.

Kvant itself remained attached to the Mir station throughout its long life. Kvant successfully operated until fall 1989, at which time operation was stopped for a planned reconfiguration of the Mir station. Kvant was restarted in October 1990 with calibration observations showing no apparent degradation from the year off. Attitude control thrusters were added to one of the external masts mounted by cosmonauts in 1992 to reduce fuel consumption of pointing maneuvers. One solar array wing from the Kristal module was transferred to Kvant in 1992. Two new solar arrays (12 kW total) were delivered in 1995 to replace Kristal array. Most of Kvant's instruments had failed by the mid-1990's and by then it was used mainly for rubbish storage.

Spacecraft Description

The Kvant ('Quantum') module was the first addition to the Mir base block and contained scientific instruments for astrophysical observations and materials science experiments. Kvant conducted research into the physics of active galaxies, quasars and neutron stars. The module also supported biotechnology experiments in anti-viral preparations and fractions.

The module was divided into a pressurized laboratory compartment (40 cubic meters total pressurized volume) and a non-pressurized equipment compartment. The laboratory compartment was further divided into an instrumentation area and a living area, which were separated by an interior partition. A pressurized transfer compartment connected the Mir base block with the laboratory compartment.

The unpressurised equipment compartment contained power stabilizers. In addition to its primary scientific equipment, the module also carried Gyrodyne flywheel gyrostabilizers designed orient the station without use of propellant. Two external masts, erected by cosmonauts on the outside of Kvant, were used for a variety of experiments. Two Earth horizon sensors, two star sensors, and three star trackers were used for attitude knowledge.

Payloads aboard Kvant included four experiments, that taken together, were sometimes referred to as the Roentgen Observatory. All four experiments pointed toward the same source at the same time:

  • TTM Coded Mask Imaging Spectrometer - a wide-angle camera that used a coded aperture mask to determine source location. It covered the energy range 2-30 keV with a 7.8 deg x 7.8 deg field of view. It could achieve an angular resolution of 2 arcminutes and a time resolution of 1 sec. Provided by the Netherlands/UK.

  • HEXE (High Energy X-ray Experiment) - Four detectors that covered the 15-200 keV energy range. The instrument had a 1.6 x1.6 deg field of view and has a maximum time resolution was 0.3-25 ms. Provided by West Germany.

  • Sirene 2 Gas Scintillation Proportional Spectrometer - a gas scintillation proportional counter that covered the 2-100 keV energy range. It had a 3 x 3 deg field of view with a maximum time resolution of 1.25-2.5 ms. Provided by ESA.

  • Pulsar X-1 - 4 Phoswich detectors that covered the 20-1300 keV energy range. It had a 3 x 3 deg field of view with a maximum time resolution of 10 s. Provided by the USSR.

Additional experiments included:

  • Glazar UV Spectrometer - covered wavelengths between 1150-1350 angstrom. The instrument could provide up to 1-2 angstrom resolution and had a 1.3 deg FOV.
  • Mariya magnetic spectrometer - measured high-energy electron and positron fluxes in near-Earth space.
  • Arfa-E - installed on the exterior of the module in January 1990 to investigate the Earth's ionosphere and magnetosphere by injecting electron beams perpendicular to the geomagnetic field.

Characteristics

Habitable Volume: 40.00 m3. Electric System: 6.90 average kW.

AKA: 11F37.
Gross mass: 18,500 kg (40,700 lb).
Unfuelled mass: 13,500 kg (29,700 lb).
Payload: 4,100 kg (9,000 lb).
Height: 13.00 m (42.00 ft).
Span: 4.20 m (13.70 ft).
First Launch: 1987.03.31.
Number: 2 .

More... - Chronology...


Associated Countries
Associated Spacecraft
  • Mir complex Russian manned space station. Assembled 1986 to 1996. Designation given to the entire Mir space station. More...
  • Kvant FGB Russian manned spacecraft module. One launch, 1987.03.31 (Kvant 1). Used only once, tug docked Kvant module to station, then separated and was commanded to destructive reentry over Pacific Ocean. Space station module tug. More...
  • Kvant AM Russian manned space station module. One launch, 1987.03.31 (Kvant 1). Space station module astrophysics. More...

Associated Engines
  • KRD-442 Isayev N2O4/UDMH rocket engine. 4.38 / 0.17 kN. Orbital propulsion for FGB-derived modules for Mir and ISS. In Production. Main and low-thrust mode. Operation of turbopump without chamber used to pump propellants into tanks from Progress tankers. More...

See also
  • Kvant The Kvant was the Soviet third generation light launch vehicle planned to replace the Kosmos and Tsyklon series. Unlike the vehicles it was to replace, the booster used non-toxic 'environmentally friendly' liquid oxygen/kerosene propellants. Although such a light launch vehicle was on Space Forces wish lists since 1972, full scale development was again deferred due to the crash effort on Soviet 'star wars' in the second half of the 1980's. RKK Energia marketed the vehicle design from 1994 to 2001, but could find no source for development funds. More...
  • Proton The Proton launch vehicle has been the medium-lift workhorse of the Soviet and Russian space programs for over forty years. Although constantly criticized within Russia for its use of toxic and ecologically-damaging storable liquid propellants, it has out-lasted all challengers, and no replacement is in sight. More...

Associated Launch Vehicles
  • Proton The Proton launch vehicle has been the medium-lift workhorse of the Soviet and Russian space programs for over forty years. Although constantly criticized within Russia for its use of toxic and ecologically-damaging storable liquid propellants, it has out-lasted all challengers, and no replacement is in sight. Development of the Proton began in 1962 as a two-stage vehicle that could be used to launch large military payloads or act as a ballistic missile with a 100 megaton nuclear warhead. The ICBM was cancelled in 1965, but development of a three-stage version for the crash program to send a Soviet man around the moon began in 1964. The hurried development caused severe reliability problems in early production. But these were eventually solved, and from the 1970's the Proton was used to launch all Russian space stations, medium- and geosynchronous orbit satellites, and lunar and planetary probes. More...
  • Proton-K Russian orbital launch vehicle. Development of a three-stage version of the UR-500 was authorised in the decree of 3 August 1964. Decrees of 12 October and 11 November 1964 authorised development of the Almaz manned military space station and the manned circumlunar spacecraft LK-1 as payloads for the UR-500K. Remarkably, due to continuing failures, the 8K82K did not satisfactorily complete its state trials until its 61st launch (Salyut 6 / serial number 29501 / 29 September 1977). Thereafter it reached a level of launch reliability comparable to that of other world launch vehicles. More...

Associated Manufacturers and Agencies
  • Chelomei Russian manufacturer of rockets, spacecraft, and rocket engines. Chelomei Design Bureau, Reutov, Russia. More...
  • MOM Russian agency overseeing development of spacecraft. Ministry of General Machine Building (Moskva, Russia), Moscow, Russia. More...

Associated Programs
  • Mir The Mir space station was the last remnant of the once mighty Soviet space programme. It was built to last only five years, and was to have been composed of modules launched by Proton and Buran/Energia launch vehicles. These modules were derived from those originally designed by Chelomei in the 1960's for the Almaz military station programme. As the Soviet Union collapsed Mir stayed in orbit, but the final modules were years late and could only be completed with American financial assistance. Kept flying over a decade beyond its rated life, Mir proved a source of pride to the Russian people and proved the ability of their cosmonauts and engineers to improvise and keep operations going despite all manner of challenges and mishaps. More...

Bibliography
  • McDowell, Jonathan, Jonathan's Space Home Page (launch records), Harvard University, 1997-present. Web Address when accessed: here.
  • JPL Mission and Spacecraft Library, Jet Propulsion Laboratory, 1997. Web Address when accessed: here.
  • NASA Shuttle-Mir Web, NASA, 1997. Web Address when accessed: here.
  • Matson, Dr Wayne R, Editor, Cosmonautics - A Colorful History, Cosmos Books, Washington DC, 1994.
  • Kaesmann, Ferdinand, et. al., "Proton - Development of A Russian Launch Vehicle", Journal of the British Interplanetary Society, 1998, Volume 51, page 3.
  • Portree, David S. F., Mir Hardware Heritage, NASA Reference Publication 1357, March 1995.
  • Vladimirov, A, "Tablitsa zapuskov RN 'Proton' i 'Proton K'", Novosti kosmonavtiki, 1998, Issue 10, page 25.
  • McDowell, Jonathan, Launch Log, October 1998. Web Address when accessed: here.
  • Hendrickx, Bart, "The Origins and Evolution of Mir and Its Modules", Journal of the British Interplanetary Society, Vol. 51, P. 203-222, 1998..

Associated Launch Sites
  • Baikonur Russia's largest cosmodrome, the only one used for manned launches and with facilities for the larger Proton, N1, and Energia launch vehicles. The spaceport ended up on foreign soil after the break-up of Soviet Union. The official designations NIIP-5 and GIK-5 are used in official Soviet histories. It was also universally referred to as Tyuratam by both Soviet military staff and engineers, and the US intelligence agencies. Since the dissolution of the Soviet Union the Russian Federation has insisted on continued use of the old Soviet 'public' name of Baikonur. In its Kazakh (Kazak) version this is rendered Baykonur. More...

Kvant Chronology


1979 September 17 - .
  • 37K space station module authorised - . Nation: USSR. Spacecraft: 37KB; 37KS; NPG; 37K-Mir; LO; Kvant. The basic 37K design consisted of a 4.2 m diameter pressurised cylinder with a docking port at the forward end. It was not equipped with its own propulsion system. The original authorisation was for a total of eight 37K's of various configurations. Of these, only the 37K-E (Kvant module of Mir) and the 37KS (instrumentation module in Buran) would fly.

1983 November - .
  • 37KS Modules for Mir cancelled, replaced by FGB modules. - . Nation: USSR. Spacecraft: 37KS; Kvant; Spektr; Priroda; Kristall; Kvant-2; Mir. Design and fabrication reached an advanced phase when it was decided that the separate tug concept resulted in too low a net scientific payload (3 tonnes). Integrating the tug with the module was expected to increase this to 5 tonnes and provide some reserve engine capability at Mir and additional pressurised volume. Accordingly the 37KS modules for Mir were cancelled. Work on the 37KE experimental module (Kvant) and the 37KB Buran modules continued. The function of the 37KS modules was taken up by modules by KB Salyut derived from the FGB. A competing proposal from NPO Energia for a unified spacecraft that combined the 37KS module with the engine unit of Mir was rejected.

1985 During the Year - .
  • Mir planned orbit changed to 51.6 degree inclination - . Nation: USSR. Spacecraft: Kvant. Summary: This change was made at least partially due to weight growth in the add-on modules, which had become too heavy for the standard Proton launch vehicle..

1986 November - .
  • Kvant module delivered to Baikonur - . Nation: USSR. Flight: Mir EO-2. Spacecraft: Kvant. Summary: Kvant was originally to be launched in late 1986 but problems with its scientific payload resulted in it spending 14 months (versus 5 planned!) at the spacecraft integration hall at Korolev..

1987 March 31 - . 00:16 GMT - . Launch Site: Baikonur. Launch Complex: Baikonur LC200/39. LV Family: Proton. Launch Vehicle: Proton-K. LV Configuration: Proton-K 336-02.
  • Kvant 1 - . Payload: 37KE s/n 010 / 77KE s/n 16601. Mass: 20,000 kg (44,000 lb). Nation: USSR. Agency: MOM. Program: Mir. Class: Manned. Type: Manned space station. Flight: Mir EO-2; Mir LD-1. Spacecraft: Kvant. Duration: 2,586.99 days. Decay Date: 2001-03-23 . USAF Sat Cat: 17845 . COSPAR: 1987-030A. Apogee: 393 km (244 mi). Perigee: 385 km (239 mi). Inclination: 51.6000 deg. Period: 92.30 min. MIR module; high energy observatory. Docked with Mir. Rendezvous with Mir 5 April; soft dock 9 April; EVA on 11 April to remove fabric strip from docking apparatus and hard dock; jettisoned service module on 12 April at 22:18

    Maneuver Summary:
    168 km X 278 km orbit to 172 km X 300 km orbit. Delta V: 7 m/s
    169 km X 296 km orbit to 172 km X 314 km orbit. Delta V: 5 m/s
    170 km X 313 km orbit to 297 km X 345 km orbit. Delta V: 46 m/s
    298 km X 344 km orbit to 345 km X 364 km orbit. Delta V: 18 m/s
    Service Module only, after undocking with Mir:
    345 km X 364 km orbit to 341 km X 363 km orbit. Delta V: 1 m/s
    340 km X 361 km orbit to 383 km X 406 km orbit. Delta V: 24 m/s
    Total Delta V: 101 m/s
    Officially: Extra-atmospheric astronomic research and resolution of a number of problems with scientific and economic applications.
  • FSB - . Payload: FSB No. 16601. Nation: USSR. Agency: MOM. Program: Mir. Flight: Mir EO-2; Mir LD-1. Spacecraft: Kvant. Decay Date: 1988-08-25 . USAF Sat Cat: 17851 . COSPAR: 1987-030C. Apogee: 404 km (251 mi). Perigee: 380 km (230 mi). Inclination: 51.6000 deg. Period: 92.40 min.

1987 April 12 - .
  • Kvant docks to Mir - . Nation: USSR. Flight: Mir EO-2. Spacecraft: Kvant. It managed to dock to Mir on the third attempt after the crew removed a trash bag from the docking collar in a space walk. The FGB tug, its work done, then backed away from the station. But the manoeuvres had cut into its already-reduced propellant supply. Unable to deorbit itself to a controlled burn-up in the atmosphere, the FGB was instead commanded to boost itself into a storage orbit 40 km above Mir.

1988 August 25 - .
  • Kvant FGB Tug re-enters - . Nation: USSR. Flight: Mir EO-3. Spacecraft: Kvant. The FGB tug's multiple docking manoeuvres in April 1987 had cut into its already-reduced propellant supply. Unable to deorbit itself to a controlled burn-up in the atmosphere, the FGB was instead commanded to boost itself into a storage orbit 40 km above Mir. From there its orbit decayed until it made an uncontrolled re-entry.
