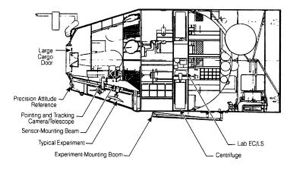

MORL



MORL
Credit: NASA
MORL/S-IVB Concept
Credit: NASA
MORL/Space Telescope
Credit: NASA
American manned space station. Study 1962. In June 1964 Boeing and Douglas received Phase I contracts for Manned Orbital Research Laboratory station designs. The recommended concept was a 13.

5 metric ton "dry" space station, launched by Saturn IB, with Gemini or Apollo being used for crew rotation. The 6.5 meter diameter and 12.6 meter long station included a docking adapter, hangar section, airlock, and a dual-place centrifuge. Douglas was selected by NASA LaRC for further Phase 2 and 3 studies in 1963 to 1966. Although MORL was NASA's 'baseline station' during this period, it was dropped by the late 1960's in preference to the more capable station that would become Skylab.

The Manned Orbital Research Laboratory was the brainchild of Carl M Houson and Allen C. Gilbert, two engineers at Douglas. In 1963 they proposed a Mini Space Station using existing hardware, to be launched by 1965. A Titan II or Atlas would be launched with a payload of control system, docking adapter and hangar module. The visiting crew would use the payload to transform the empty fuel tank of the last stage of the rocket into pressurized habitat (a so-called "wet" space station). Provisions were available for 4 astronauts for a 100 day stay. Crew members would arrive two at a time aboard Gemini spacecraft. Equipment included a two-place centrifuge for the astronauts to readapt to gravity before their return to earth.

In June 1964 Boeing and Douglas received Phase I contracts for further refinement of MORL station designs. The recommended concept was now for a 13.5 metric ton "dry" space station, launched by Saturn IB, with Gemini or Apollo being used for crew rotation. The 6.5 meter diameter and 12.6 meter long station included a docking adapter, Hangar section, airlock, and a dual-place centrifuge.

Douglas was selected by NASA LaRC for further Phase 2 and 3 studies in 1963 to 1966. The major system elements of the baseline that emerged included:

  • A 660-cm-diameter laboratory launched by the Saturn IB into a 370-km orbit inclined at 28.72 degrees to the equator
  • A Saturn IB- launched Apollo logistics vehicle, consisting of a modified Apollo command module, a service pack for rendezvous and re-entry propulsion, and a multi-mission module for cargo, experiments, laboratory facility modification, or a spacecraft excursion propulsion system
  • Supporting ground systems.

MORL Phase IIb examined the utilization of the MORL for space research in the 1970s. Subcontractors included:

  • Eclipse-Pioneer Division of Bendix, stabilization and control
  • Federal Systems Division of IBM, communications, data management, and ground support systems
  • Hamilton Standard Division of the United Aircraft Corporation, environmental control/life support
  • Stanford Research Institute, priority analysis of space- related objectives
  • Bissett-Berman, oceanography
  • Marine Advisors, oceanography
  • Aero Services, cartography and photogrammetry
  • Marquardt, orientation propulsion
  • TRW, main engine propulsion.

The original MORL program envisioned one or two Saturn IB and three Titan II launches. Crew would be 6 to 9 Astronauts. After each Gemini docked to the MORL at the nose of the adapter, the crew would shut down the Gemini systems, put the spacecraft into hibernation, and transfer by EVA to the MORL airlock. The Gemini would then be moved by a small manipulator to side of the station to clear docking adapter for arrival of the next crew.

Later concepts including docking a Saturn-IB-launched space telescope to MORL. At 4 meter diameter and 15 meter long, this would be the same size as the later Hubble Space Telescope. The crew would have to make EVA's to recover the film from the camera.

In 1965 Robert Sohn, head of the Technical Requirements Staff, TRW Space Technology Laboratories, proposed a detailed plan for early manned flight to Mars using MORL. The enlarged MORL-derived mission module would house six to eight men and be hurled on a Mars flyby by a single Saturn MLV-V-1 launch. MORL-derived Mars mission modules cropped up in other Douglas Mars studies until superseded by the 10-m diameter Planetary Mission Module in 1969.

Why was MORL never launched ? NASA had a need for a Space Station and MORL was little, easy and cheap. But NASA had more ambitious plans, embodied in the Apollo Applications Orbital Workshop (later called Skylab).

AKA: Manned Orbital Research Laboratory.
Gross mass: 13,500 kg (29,700 lb).
Height: 12.60 m (41.30 ft).

More... - Chronology...


Associated Countries
See also
  • US Space Stations Wernher von Braun brought Noordung's rotating station design with him from Europe. This he popularized in the early 1950's in selling manned space flight to the American public. By the late 1950's von Braun's team favoured the spent-stage concept - which eventually flew as Skylab. By the mid-1960's, NASA was concentrating on modular, purpose-built, zero-G stations. These eventually flew as the International Space Station. More...

Associated Launch Vehicles
  • Saturn I American orbital launch vehicle. Von Braun launch vehicle known as 'Cluster's Last Stand' - 8 Redstone tanks around a Jupiter tank core,powered by eight Jupiter engines. Originally intended as the launch vehicle for Apollo manned circumlunar flights. However it was developed so early, no payloads were available for it. More...
  • Saturn IB American orbital launch vehicle. Improved Saturn I, with uprated first stage and Saturn IVB second stage (common with Saturn V) replacing Saturn IV. Used for earth orbit flight tests of Apollo CSM and LM. More...

Associated Manufacturers and Agencies
  • Douglas American manufacturer of rockets, spacecraft, and rocket engines. Boeing Huntington Beach, Huntington Beach, CA, USA. More...

Bibliography
  • NASA Report, Gemini Spacecraft Study for MORL Ferry Missions, Web Address when accessed: here.
  • NASA Report, A System Study of A Manned Orbital Telescope, Web Address when accessed: here.
  • NASA Report, A System Study of A Manned Orbital Telescope - Synchronous Orbit Study, Web Address when accessed: here.
  • NASA Report, Performance Characteristics of Control Moment Gyro Systems For Manned Orbital Laboratories, Web Address when accessed: here.
  • NASA Report, Manual Control For The Morl, Web Address when accessed: here.
  • NASA Report, Report on the development of the Manned Orbital Research Laboratory /MORL/ system utilization potential. Task area III - MORL concept responsiveness analysis, book 1, Web Address when accessed: here.
  • NASA Report, Report on the development of the Manned Orbital Research Laboratory /MORL/ system utilization potential. Task area II - Integrated mission development plan, book 2, Web Address when accessed: here.
  • NASA Report, Report on the development of the Manned Orbital Research Laboratory /MORL/ system utilization potential. Task area IV - MORL SYSTEM improvement study, book 4, Web Address when accessed: here.
  • NASA Report, Manual Sontrol for the MORL, Web Address when accessed: here.
  • NASA Report, Space station mission simulation mathematical model Summary report, Web Address when accessed: here.

MORL Chronology


1962 October 17 - .
  • Potential uses and experiments for a manned space station. - . Nation: USA. Related Persons: Shea. Spacecraft: MORL; Orbital Workshop. Joseph F. Shea, Deputy Director for Systems, Office of Manned Space Flight, solicited suggestions from each of the Headquarters' Program Offices and the various NASA Centers on the potential uses and experiments for a manned space station. Such ideas, Shea explained, would help determine whether adequate justification existed for such a space laboratory, either as a research center in space or as a functional satellite. Additional Details: here....

1962 December 15 - .
  • Preliminary statement of work for a manned space station study program . - . Nation: USA. Spacecraft: MORL; Orbital Workshop. MSC researchers compiled a preliminary statement of work for a manned space station study program in anticipation of study contracts to be let to industry for a supportive study. The study requirements outlined the general scope of such investigations and suggested guidelines for research areas such as configurations, onboard spacecraft systems, and operational techniques. Ideally, studies by aerospace companies would help NASA formulate a logical approach for a space station program and how it might be implemented. Throughout the study, an overall objective would be simplicity: no artificial gravity and maximum use of existing launch vehicles and spacecraft systems to achieve the earliest possible launch date.

1963 March 28 - .
  • Manned Earth Orbiting Laboratory. - . Nation: USA. Related Persons: Seamans. Spacecraft: MORL. Associate Administrator Robert C. Seamans, Jr., asked Abraham Hyatt of Headquarters to organize a task team to study the concept of a Manned Earth Orbiting Laboratory. Seamans pointed out that such a laboratory was under consideration by several government agencies and that NASA and the Department of Defense were at that time supporting a number of advanced feasibility studies. He said that such a laboratory bore a very heavy interrelationship between manned space flight, space sciences, and advanced research and technology and that NASA's top management was faced with the decision whether to initiate hardware development. Hyatt's aft's team thus must examine broadly the needs of an orbiting laboratory from NASA's viewpoint, as well as that of outside agencies, and the operational and scientific factors impinging on any possible decision to undertake hardware development.

1963 April 11 - .
  • Manned Orbital Research Laboratory (MORL). - . Nation: USA. Related Persons: Kraft. Spacecraft: MORL. Christopher C. Kraft, Jr., John D. Hodge, and William L. Davidson of MSC's light Operations Division met at Langley with a large contingent of that Center's research staff to discuss LaRC's proposed Manned Orbital Research Laboratory (MORL). Langley spokesmen briefed their Houston visitors on the philosophy and proposed program phases leading to an operational MORL. Kraft and his colleagues then emphasized the need for careful study of operational problems involved with the MORL, as well as those associated with the smaller crew ferry and logistics supply vehicles. Specifically, they cited crew selection and training requirements, the need for a continuous recovery capability, communications requirements, and handling procedures for scientific data.

1963 June 24 - .
  • Manned Orbital Research Laboratory concept contracts. - . Nation: USA. Spacecraft: MORL. LaRC Director Floyd L. Thompson announced that two aerospace firms, The Boeing Company of Seattle and Douglas Aircraft Company, Inc., of Santa Monica, had been selected for final negotiations for study contracts of a Manned Orbital Research Laboratory (MORL) concept. Additional Details: here....

1964 January 8 - .
  • NASA criticises Manned Orbiting Laboratory. - . Nation: USA. Spacecraft: MORL. In an interview for Space Business Daily, Edward Z. Gray, Director of Advanced Studies in NASA's Office of Manned Space Flight, predicted that NASA's manned space station would be more sophisticated than the Defense Department's Manned Orbiting Laboratory. NASA had more than a dozen study projects under way, Gray said, that when completed would enable the agency to appraise requirements and pursue the best approach to developing such a space station.

1964 March 12 - .
  • Project Development Plan for the Manned Orbital Research Laboratory. - . Nation: USA. Spacecraft: Apollo X; MORL; LORL. Edward Z. Gray, Advanced Manned Missions Director in the Office of Manned Space Flight, asked LaRC Director Charles J. Donlan to prepare a Project Development Plan for the Manned Orbital Research Laboratory, studies for which were already underway at the Center and under contract. This plan was needed as documentation for any possible decision to initiate an orbital research laboratory project. (Gray had also asked MSC to submit similar plans for an Apollo X, an Apollo Orbital Research Laboratory, and a Large Orbital Research Laboratory.) In addition to the Project Development Plan, Gray asked for system specifications for each candidate orbital laboratory system; both of these would form the basis for a project proposal with little delay 'should a climate exist in which a new project can be started.'

1964 June - .
  • MORL Phase I contracts - . Nation: USA. Spacecraft: MORL. Boeing and Douglas received Phase I contracts for further refinement of MORL station designs. The recommended concept was now for a 13.5 tonne 'dry' space station, launched by Saturn IB, with Gemini or Apollo being used for crew rotation. The 6.5 meter diameter and 12.6 meter long station included a docking adapter, Hangar section, airlock, and a dual-place centrifuge.

1964 July 14 - .
  • Douglas six-man space research station. - . Nation: USA. Spacecraft: MORL. A study submitted to NASA by Douglas Aircraft Company concluded that a six-man space research station, capable of orbiting for one year, could be orbiting the Earth within five years. The crew, serving on a staggered schedule, would travel to and from the station on modified Gemini or Apollo spacecraft. The station would provide a small degree of artificial gravity by rotating slowly and would include a centrifuge to simulate reentry forces.

1965 June 18 - .
  • Douglas Aircraft Company follow-on study contract for the MORL. - . Nation: USA. Spacecraft: MORL; Apollo X. Summary: LaRC awarded Douglas Aircraft Company a follow-on study contract for the MORL, emphasizing use of the AES program as a prerequisite to the MORL. Douglas was to examine particularly interfaces between AES experiments and missions and the MORL program. .

1965 October - .
  • Stanford Research Institute study on Douglas manned orbital research laboratory (MORL). - . Nation: USA. Spacecraft: MORL. The Stanford Research Institute, Menlo Park, California, performed a study on a manned orbital research laboratory (MORL) for Douglas Aircraft Company, Inc., Santa Monica. Major conclusions of the study included the following: The MORL mission was highly desirable for the posture of the United States in the international community. The improvement of this position would represent, perhaps, MORL's greatest contribution to our nation. Additional Details: here....

1965 October - .
  • Douglas plan for orbital space station development . - . Nation: USA. Spacecraft: MORL. A plan for orbital space station development responsive to the research and development needs of a broad-based space exploration program was presented to the Deutsche Gesellschaft fur Rakententechnik und Raumfarht, Munich, Germany. The paper was prepared by Douglas Aircraft Company, Inc., Santa Monica. The main theme of the paper centered on low-Earth-Orbit applications of space stations. It suggested that the space station system would start with limited life laboratories and evolve into extended life, continuously manned space stations. In the development of the space station, four major subsystems would be required: life support, power, stabilization and control, and communications. Of these, the life support and power subsystems would require significant extensions to current technology. While touching on lunar-orbital and interplanetary missions, it was indicated that in the evolution of the space station the low-Earth-orbital missions were of primary importance because they could accommodate applications development, capability-engineering development, biomedical behavioral experiments, and scientific experiments. Polar orbits would be required for cartographic, meteorologic, geologic, and natural resources surveys. Synchronous orbits would be useful primarily for communications, allowing continuous communications without the necessity of vast ground or orbital relay networks.

1965 October 20 - .
  • First coordination meeting on the S-IVB Orbital Workshop and related Apollo Applications Program activities. - . Nation: USA. Program: Skylab. Spacecraft: Skylab; MORL. MSC and MSFC program officials and engineers held their first coordination meeting on the S-IVB Orbital Workshop and related Apollo Applications Program experiment activities. Among the most significant results of this meeting was a request by Houston for inclusion of an artificial gravity experiment as part of the S-IVB command and service module concept of the Workshop. MSFC officials undertook to define the feasibility of such an experiment, examining several possible technical approaches (including cables a concept that MSC found less shall appealing). MSFC investigators also sought help from LaRC, where considerable work along this line had been done as part of that Center's MORL study program.

1966 February - .
  • Douglas summary report covering the activities of three phases of the MORL study. - . Nation: USA. Spacecraft: MORL. Douglas Aircraft Company submitted a summary report to LaRC covering the activities of three phases of the MORL study. General objectives of the MORL study were to (1) establish the feasibility of a manned research laboratory; (2) determine the required level of technical, logistic, and economic support; and (3) define a realistic space station program responsive to the needs of NASA and other government agencies in particular and the scientific community in general. The three phases of the study were Phase I (June-September 1963)-System Comparison and Selection Study of a MORL Phase IIa (December 1963-November 1964)-Optimization of the MORL System Concept Phase IIb (December 1964-February 1966)-Development of the MORL System Utilization Potential. Additional Details: here....
