Kvant
|
|
37KS
|
Development of a new kind of Soviet space station module, designated 37K, was authorized on 17 September 1979. The basic 37K design consisted of a 4.2 m diameter pressurized cylinder with a docking port at the forward end. It was not equipped with its own propulsion system. The original authorization was for a total of eight 37K's of various configurations.- Four 37KS modules for Mir. These would also be launched by Proton and delivered and docked to the station by a new lighter weight FGO tug.
|
|
|
|
|

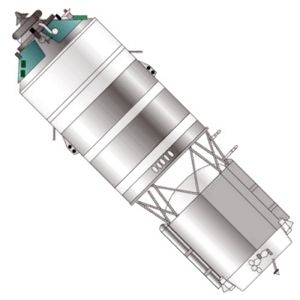

37K-Mir
|
Development of a new kind of Soviet space station module, designated 37K, was authorized on 17 September 1979. The basic 37K design consisted of a 4.2 m diameter pressurized cylinder with a docking port at the forward end. It was not equipped with its own propulsion system. The 37KS modules for Mir were cancelled in 1983 in favor of KB Salyut designs derived from the Chelomei TKS spacecraft.
|
|
|
|
|
|
LO
|
Development of a new kind of Soviet space station module, designated 37K, was authorized on 17 September 1979. The basic 37K design consisted of a 4.2 m diameter pressurized cylinder. The 37KB modules, similar to the Kvant module of the Mir space station, were to be standard on the early Buran flights. A later version of the design for civilian experiments, the LO Laboratory Compartment, would be retained in the payload bay of Buran and connected to the orbiter's cockpit area by an access tunnel. Work on the 37KB modules was finally stopped completely when further Buran funding was ended in 1993.
|
|
|
|
|
Kvant
|
The Kvant spacecraft represented the first use of a new kind of Soviet space station module, designated 37K. An order authorizing the beginning of development was issued on 17 September 1979. The basic 37K design consisted of a 4.2 m diameter pressurized cylinder with a docking port at the forward end. It was not equipped with its own propulsion system. The original authorization was for a total of eight 37K's of various configurations:
- One experimental 37KE (using a surplus FGB module of the cancelled Chelomei TKS manned ferry as a tug) which would be docked to the front port of the Salyut 7 space station.
|
|
|
|
|
|
NPG
|
Development of a new kind of Soviet space station module, designated 37K, was authorized on 17 September 1979. The basic 37K design consisted of a 4.2 m diameter pressurized cylinder. The 37KB modules, similar to the Kvant module of the Mir space station, were to be standard on the early Buran flights. A later version of the design for military experiments, the NPG Retained Payload, would be mounted in the payload bay of Buran and connected to the orbiter's cockpit area by an access tunnel. Work on the 37KB modules was finally stopped completely when further Buran funding was ended in 1993.
|
|
|
|
|
37KB
|
Development of a new kind of Soviet space station module, designated 37K, was authorized on 17 September 1979. The basic 37K design consisted of a 4.2 m diameter pressurized cylinder with a docking port at the forward end. It was not equipped with its own propulsion system. The original authorization was for a total of eight 37K's of various configurations:
- Three 37KB modules. These would be carried in the payload bay of the Buran space shuttle. They could remain attached to the bay or (modified to the 37KBI configuration) be docked to the Mir or Mir-2 space stations using the Buran manipulator arm.
|
|
|
|
|
