Cooper

---

Mercury Atlas 9 Credit - NASA Media Gallery

15 May 1963 13:04 GMT. Landing Date: 1963-05-16 23:24:02. Flight Time: 1.43 days. Flight Up: Mercury 9. Flight Back: Mercury 9. Call Sign: Faith 7. Crew: Cooper. Backup Crew: Shepard. Location of Capsule: Space Center Houston (NASA Johnson Space Center's Visitor Center), Houston, TX. Program: Mercury.

Quote: Well, things are beginning to stack up a little. ASCS inverter is acting up. And my CO2 is building up in the suit. Partial pressure of 02 is decreasing in the cabin. Standby inverter won't come on the line. Other than that things are fine.

On the lighter side: At the roll-out of his Atlas booster, Cooper wrote on its side: "Launch this way ==>" During the flight a red warning light came on, indicating the capsule was prematurely re-entering the atmospere. Cooper finally disconnected it so he wouldn't have to see it any more.

What went wrong: In long duration mission, virtually all capsule systems failed. Nevertheless the astronaut was able to manually guide the spacecraft to a pinpoint landing. Final Mercury mission, Faith 7, was piloted by Astronaut L. Gordon Cooper, Jr. After 22 orbits, virtually all spacecraft systems had failed, and Cooper manually fired the retrorockets and the spacecraft reentered the atmosphere, landing safely in the Pacific Ocean 34 hours, 19 minutes, and 49 seconds after liftoff. Cooper was reported in good condition, and this turned out to be the final Mercury flight.

Official NASA Account of the Mission from This New Ocean: A History of Project Mercury, by Loyd S. Swenson Jr., James M. Grimwood, and Charles C. Alexander, NASA Historical Series SP-4201, 1966.

Sixty seconds upward, MA-9 initiated its pitch program, and Cooper felt the max-q vibrations grow, but the rate gyros sensed greater lateral oscillations than the pilot did. Six or seven swings from peg to peg on his instruments, and the flight smoothed out. Two minutes and 14 seconds upward Cooper heard "a loud 'glung' and then a sharp, crisp 'thud' for staging" as booster engines cut themselves out and off. Then away flew the needless escape tower, and at three minutes after launch cabin pressure sealed and held while Cooper reported, "Faith 7 is all go."

The Atlas sustainer engine continued to accelerate, and its guidance system performed perfectly for two more minutes before SECO. Faith 7 and "Sigma 7" swapped remarks on the sweetness of the trajectory. Schirra, at the point of Cooper's orbital insertion and capsule separation, said, "Smack dab in the middle of the go plot. Beautiful." And Cooper replied, after turning around on the fly-by-wire, "Boy, oh, boy . . . working just like advertised!"

In full horizontal flight over Bermuda at 17,547 miles per hour, Cooper watched his booster lag and tumble for about eight minutes, then checked his temperatures and contingency recovery areas, and tried to adjust to the strange new sensations and perspectives at a little more than 100 miles (near his perigee) above sea level. Floating higher in his couch, now that he was weightless, Cooper agreed with Carpenter's report that an astronaut's sense of the cockpit changes when he reaches zero g and no longer feels himself flying flat on his back. Status checks with the Canary Islands and Kano, Nigeria, came on so fast that Cooper could hardly believe he had crossed the Atlantic Ocean and half of Africa already.

Over Zanzibar, he learned that his orbital parameters looked good enough for at least 20 revolutions and that all Faith 7's telemetry was working well. His suit temperature fluctuated somewhat erratically, but as he watched his first sunset from space over the Indian Ocean he forgot his discomfort while looking at the airglow, spotting the twinkleless stars, and observing sheet lightning in scattered thunderstorms "down under." He saw the lights of Perth, Australia, on schedule 55 minutes after liftoff, and over Canton Island, in the Polynesian Archipelago, just south of the equator, the Sun began to rise behind him (as he flew backward toward the sunrise), and Cooper reported observing Glenn's "fireflies," or Carpenter's "frostflies," drifting along with the spacecraft at five miles per second.

From Guaymas, Mexico, Grissom, acting as capsule communicator, officially relayed the computer-blessed "go for seven orbits." Cooper, audibly impressed with the perfection of the flight so far, said, "It's great. . . . quite a full night. . . . everything appears very nominal on board here." As Cooper passed over the launch site at Cape Canaveral, Schirra raised him on the radio circuits once again and complained, "You son-of-a-gun, I haven't got anything to talk about. . . . I'm still higher and faster, but I have an idea you're going to go farther." The manned one-day mission was off to an auspicious start. Alan Shepard, who had been Cooper's backup pilot and was now also talking to Faith 7 from Mercury Control, coached Cooper into his second orbit, saying, "All of our monitors down here are overjoyed. Everything looks beautiful."

Cooper thought so, too. All his spacecraft and physiological systems performed perfectly on his first two orbits. His only complaint concerned an oily film on his "windshield" that seemed to be on the outside pane of the window. Between Zanzibar and Muchea on his second pass, Cooper dozed off for a four-minute nap and then drifted across the Pacific, observing storms while inverted and stars when facing spaceward.

Beginning with his third orbit, the astronaut checked over the 11 experiments in which he was to participate. He prepared to eject a six-inch-diameter sphere, equipped with polar xenon strobe lights, that was to test his ability to spot and track a flashing beacon in a tangential orbit. At three hours and 25 minutes elapsed time, Cooper clicked the squib switch and heard and felt the beacon kick away. But, try as he might, he could not see the flashing light in the dusk or on the nightside during this round. On the fourth orbit, however, he did spot the beacon at sunset and later saw it pulsing. So he knew he had indeed launched a satellite from his satellite. Cooper jubilantly reported to Carpenter on Kauai, "I was with the little rascal all night."

Subsequently, on his fifth and sixth orbits, Cooper saw the flashing xenon several more times, and likewise spotted the constant xenon ground light of 44,000 watts placed at Bloemfontein, a little horseshoe-shaped town in the Union of South Africa. Having eaten some bite-sized brownie and fruitcake foods and excreted periodic samples for urinalysis, Cooper also kept up with his calibrated exercises, took oral temperatures and blood pressure readings, and did other duties required for the highest priority experiments of the MA-9 mission, the aeromedical ones.

Also on his sixth orbit, after nine hours in space, the astronaut set his cameras, attitude, and switches to deploy a tethered balloon, similar to the one tried on MA-7, for aerodynamic studies of drag and for more visual experiments. The balloon, a 30-inch-diameter Mylar sphere painted fluorescent orange, was to be inflated with nitrogen and attached by a 100-foot nylon line to the spacecraft antenna canister; a strain gauge in the canister should be able to measure the differences in pull on the balloon at apogee (166 miles) and perigee (100miles). Cooper carefully went through his checklist, then tried to eject the balloon package, but nothing happened. He tried again, and still nothing happened. Because the antenna canister was later lost, no one ever knew why the tethered balloon failed to eject. But the second failure of this experiment was more severely disappointing than the first.

When Cooper surpassed Schirra's record by moving into a seventh orbital pass, he was engaged with the radiation experiments and with the hydraulic work of transferring urine samples and condensate water from tank to tank. During the automatically recorded radiation measurements, he had to turn the recorders on and off precisely on time and estimate accurately, without benefit of gyros, his drifting spacecraft's attitude. The hydraulic work was more difficult, because the hypodermic-type syringes used to pump the liquid manually from one bag container to another were unwieldy and exasperatingly leaky. At 9:27 elapsed time, Cooper spoke into his tape recorder, "The thing about this pumping under zero g is not good. (Liquid) tends to stand in the pipes, and you have to actually forcibly force it through."

After 10 hours of the mission, Zanzibar officially informed Cooper that he had a go for 17 orbital passes. The tracking, communication, and computing facilities at Goddard Space Flight Center in Maryland had long since settled down to a routine in following Faith 7 around the world. The actual orbital parameters for Cooper's flight were proving so close to those planned that the differences were measurable only in tenths of a mile and hundredths of a degree. MA-9 was circumnavigating Earth once every 88 minutes and 45 seconds at an inclination angle of 32.55 degrees to the equator. Soon, as Earth turned beneath Cooper, his orbital track would have shifted too much to keep him within range of most of the scattered tracking and communications sites in Mercury's worldwide network. Then, too, the word "orbit" would become confused, because passing over the same meridian on the rotating planet is not the same as passing through the space-fixed point of orbital insertion.

Cooper spent his last "orbit" before his scheduled rest period, on orbits 9 through 13, in extensive activity. He finished the radiation measurements; he ate his supper of powdered roast beef mush and gulped some water; he took pictures over India and Tibet; and he checked all his machinery for readiness to power down and drift and dream for the next seven hours or so. Passing from the Himalayas to Japan in less than five minutes, Cooper was aroused by John Glenn's second transmission from the tracking ship Coastal Sentry, located near Kyushu. Veteran spaceman Glenn assured Astronaut Cooper, "You're sure looking good. Everything couldn't be finer on this pass."Ten minutes later Cooper had traversed the Pacific lengthwise in a southeasterly direction and had come over the telemetry command ship Rose Knot, positioned near Pitcairn Island, at latitude 25 degrees south and 120 degrees west. There he gave a full report on all systems; the shipborne communicator advised him to "settle down for a long rest."

But Cooper was still too excited and fascinated to feel sleepy. Orbit 9 was to carry him again around South America, over Africa, northern India, and Tibet during daylight, and he resolved to record on film some of the remarkable things he could see while looking down at open terrain. On this circuit Cooper snapped most of his best photographs, demonstrating his contention that he could see roads, rivers, small villages, and even individual houses if the lighting and background conditions were right. High over the highest plateau on Earth, the Tibetan highlands, where the air is thin and visibility is seldom obscured by haze, Cooper thought he could even judge speed and direction of ground winds by the smoke from the house chimneys.

In their third radio contact, John Glenn, as "Coastal Sentry Quebec," advised Cooper, who had now been in space over 13 hours, 34 minutes, that he should "tell everyone to go away and leave you alone now." Cooper then relaxed and fell into a sound sleep. He awoke drowsily an hour later when his suit temperature got too high. Intermittently, for the next six hours, during orbital passes 10 through 13, Cooper napped, took more pictures, taped status reports occasionally, and cursed to himself over the bothersome body-heat exchanger that kept creeping away toward freezing or burning temperatures. At the end of his rest period, Cooper taped his surprise at having napped so soundly that neither floating arms nor weightless dreams had startled him into awareness of where he was when he woke. But he cautioned psychologists not to make too much of this:

"Have a note to be added in for head-shrinkers. Enjoy the full drifting flights most of all, where you have really the feeling of freedom, and you aren't worried about the systems fouling up. You have everything turned off, and just drifting along lazily. However, I haven't encountered any of this so-called split-off phenomena. Still note that I am thinking very much about returning to Earth at the proper time and safely."

Coming around Muchea again, on his fourteenth pass, Cooper checked over all his systems, found his oxygen supply plentiful, and reported his peroxide fuel for attitude control showing 69 percent remaining in the automatic tank and 95 percent in the manual. He was in good shape, and all systems were still working "as advertised." At this point, Gordon Cooper spoke a prayer into his tape recorder aboard Faith 7, high in the heavens over the South Pacific. The MA-9 mission was well beyond its midpoint in time and space, and Cooper was humbly grateful that everything was still nominal. Physiologically his vision he knew was abnormally good. Philosophically the vision of this eighth man in history to orbit Earth in a manned satellite was bound to his culture, his times, and his origins in Oklahoma.

Orbit 15 was consumed largely in calibration of equipment and synchronization of clocks, since by now Earthmen had experienced one more full 24-hour day of grace, whereas Faith 7's elapsed time was faster by some 16 seconds than range-zero elapsed time. Orbit 16 brought Cooper back over Cape Canaveral and onward, virtually retracing his first shadow over Earth. The President of El Salvador had radioed greetings on pass 15, and on 16 Cooper sent a similar political greeting to African leaders meeting in Ethiopia. Then he buckled down immediately to another high-priority experiment requiring elaborate timing precautions.

As he entered Earth's shadow, or nightside, on this sixteenth orbit, Cooper caged and freed his gyros in such a manner as to allow his automatic attitude control system to torque the spacecraft slowly in pitch through the plane of the ecliptic. He could view, through his window, the mysterious phenomena of zodiacal light and night airglow layer. Together these two different objectives were called "dim light" phenomena, and the experimental photographs were designed to answer astrophysical questions about the origin, continuity, intensity, and reflectivity of visible electromagnetic spectra along the basic reference plane of the celestial sphere. They might also help answer some questions about solar energy conversion in the upper atmosphere. From Zanzibar, past the Canton Island station, Cooper called out the count as he clicked the series of astronomical photographs. Although the zodiacal light pictures turned out underexposed and the airglow shots overexposed, they were of usable quality and supplemented Carpenter's pictures from Aurora 7 nicely.

Over Mexico, Cooper shifted to the next most important photographic task, that of snapping horizon-definition imprints in each quadrant around his local vertical position. Just as University of Minnesota scientists had prepared him for the zodiacal light task, so Massachusetts Institute of Technology researchers had arranged for these snapshots to aid in the design of a guidance and navigation system for Project Apollo. Cooper's horizon-definition pictures marked a significant advance beyond those from the MA-7 mission. In contact with the Cape once again, Cooper lightheartedly complained like a typical American tourist, "Man, all I do is take pictures, pictures, pictures!"

But he was not through yet. On orbits 17 and 18 he took infrared weather photographs of good quality and a few excellent moonset Earth-limb pictures. Meanwhile, he resumed the geiger counter measurements for radiation, continued his aeromedical duties, and adjusted his television monitor at the request of ground observers. The eighteenth pass over the United States, like the sixteenth, gave his extraordinary vistas of his country from southern California, across Dallas the first time and Houston the second, to the Florida peninsula. He sang during orbits 18 and 19, still surprised with every pass, still marveling at the greenery on Earth and on his instrument panel as he came toward his thirtieth hour in space.

Although "this fine plumbing they put in this thing" proved more troublesome later, Cooper had learned to adjust his suit temperatures for comfort and to eat and drink over the rim of his helmet fairly effectively, if awkwardly. Then on his nineteenth orbit, while checking his warning lights before a high-frequency antenna test over Hawaii, Cooper noticed the first potentially serious systems anomaly of his mission.

A small telelight lit up green, indicating that Faith 7 was decelerating and that the centripetal force of gravity had overcome by .05 g the centrifugal force of the spacecraft's orbital moment of inertia. This had to be a false indication, reasoned Cooper, because he felt, and his loose gear still appeared, weightless. But were g forces building up imperceptibly? California confirmed no such indication. Mercury Control showed great concern over the implications of this little light for the attitude stabilization at retrofire. The fears of the flight controllers were realized on the next pass, when Cooper lost all attitude readings. Then, on the twenty-first orbit, a short-circuit occurred in a busbar serving the 250-volt main inverter, leaving the automatic stabilization and control system without electric power. The minor glitch had become a serious hitch.

Mercury Control Center was in a flurry of worried activity, cross-checking Faith 7's problems and Cooper's diagnostic actions with identical equipment at the Cape and in St. Louis, then relaying to each communications site questions to ask and instructions to give. Cooper remained cool, if not calm, now that his alertness had been stimulated by a medically prescribed pill of dextroamphetamine.

On the twenty-first pass (over the tracking ship Coastal Sentry), John Glenn helped Cooper prepare a revised checklist for retrofire procedure during the next, and last, time around. Only Hawaii and Zanzibar were within voice radio range on this last circuit, but communications were good. When the ASCS inverter blew out, Cooper also noted that the carbon dioxide level was rising in both his suit and cabin. "Things are beginning to stack up a little" was his classic understatement to Carpenter, and then Zanzibar heard him say he would make a manual reentry.

Twenty-three minutes later Cooper came into contact with Glenn again, reporting himself in retroattitude, holding manually, and with checkoff list complete. Glenn gave the 10-second countdown, and Cooper, keeping his pitch down 34 degrees by his window reticle, shot his retrorockets manually on the "Mark!" Glenn reported: "Right on the old gazoo. . . . Dealer's choice on reentry here, fly-by-wire or manual . . . It's been a real fine flight, Gordon. Real beautiful all the way. Have a cool reentry, will you."

"Roger, John. Thank you."

And that he did. All the complicated, crowded events of the next 15 minutes occurred precisely as planned, while Faith 7 plummeted down through the atmosphere. Four miles ahead of the prime recovery ship, again the carrier Kearsarge, just south of Midway Island, the canopied capsule containing Gordon Cooper broke through a mild overcast and landed on the lazy waves of the blue Pacific.

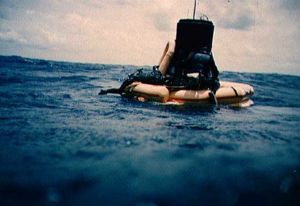

Splashdown came 34 hours and 20 minutes after liftoff. Cooper professed disappointment that he too had "missed that third elevator" aboard "Begonia," meaning the Kearsarge. The spacecraft floundered in the water for a moment, then righted itself, as hovering helicopters dropped their swimmers and relayed Cooper's request as an Air Force officer for permission to be hoisted aboard the Navy's carrier. Permission was granted, and 40 hot, humid minutes later the explosive hatch blew open at the command of MSC engineer John B. Graham, Jr. Physicians examined Cooper for eight more minutes while he lay in the couch. Then they helped him emerge and steadied him during a moment of dizziness until he regained his equilibrium. Away in triumph marched the one-man crew of the one-day Mercury mission.

Like Schirra, Cooper went through arduous medical, technical, and operational debriefings aboard the Kearsarge and later back at the Manned Spacecraft Center. He, too, was found to be dehydrated and suffering from a slight case of orthostatic hypotension. He had lost seven pounds since suiting up, but after drinking "a few gallons of liquid," he was fine, ebullient both mentally and physically, and convinced that "we certainly can elongate this mission." Robert C. Seamans, Jr., Associate Administrator of NASA, and Robert Gilruth, Director of MSC, had different ideas about MA-10, but Cooper reiterated the proof that "man is a pretty good backup system to all these automatic systems, and I think the mission was conducted just like it was planned . . . in spite of . equipment breaking down."

In addition to undergoing technical debriefings over the next several days, Cooper was honored by parades through Honolulu, Cocoa Beach, Washington - where he addressed a joint session of Congress - and New York City, where he was hailed by one of the largest tickertaped crowds ever to greet an individual. Other crowds in Houston and in his hometown of Shawnee, Oklahoma, also celebrated the return of the sixth Mercury astronaut from space.

The fact that Cooper, like Glenn, had had to take action to save his mission from a probable failure added luster and meaning to the glory he received. While postflight inspections, data reduction, and mission analyses proceeded through the following month to pinpoint the causes of the few electromechanical faults of the flight, Mercury systems engineers could find no fault with pilot performance. Physicians, however, were cautious about the implications for longer space missions of Cooper's hemodynamic response.

Probably no other result of the MA-9 mission excited more interest than Cooper's claim to have seen from orbit objects on the ground as small as trucks and houses. Skepticism on this point abated after the astronaut explained in detail to representative scientists at the Cape on May 21 just where, when, and how he could see dust and smoke below, from 100 miles directly above - if the contrast was right. Also at this, the first and only "scientific debriefing" following a Mercury flight, the value of extensive questioning of the subject pilot was clearly demonstrated, when Cooper was asked whether he could see Earthshine on the Moon. "Well," he replied, "the Moon was fuller as it was setting than it was on the nightside. It was almost a full Moon. Gee, that's funny, I hadn't even realized that before. It seemed to be almost full as it was setting, whereas on the nightside it was only a third of a Moon." This Moonshine was clearly Earthshine. Other postflight analyses added praise for the sunshine that blessed Faith 7. "The sun literally smiled on MA-9," wrote J. C. Jackson and Niles R. Heller in Goddard's report of the network radio performance. "It (MA-9) was favored with better than average radio frequency propagation conditions for the present phase of the solar sunspot cycle."

10, 9, 8, 7, 6, 5, 4, 3, 2, 1, O. Lift off.
Roger. I have a lift-off and the clock is operating.
Roger. You look good here, Gordo.
Roger. Feels good buddy.
Good Sport.
Thirty seconds, and fuel is go. Oxygen is go.
Cabin pressure on the top peg. Altimeter is working.
Roger. You're looking beautiful.
What an afterburner.
That's a beauty. And your clock's are in sync.

• 1961 Jun 28 - Tracking network requirements for the Mercury 1 day mission

  Tracking network requirements for the Mercury extended range or 1 day mission were discussed between Space Task Group and Goddard Space Flight Center personnel.

• 1961 Aug 13 - Mercury spacecraft No. 15 delivered to Cape Canaveral.  Spacecraft: Mercury.

  It was returned to McDonnell to be reconfigured to the orbital-manned 1-day mission and tentatively assigned for Mercury-Atlas 10 (MA-10). Redesign was completed, and the spacecraft, then designated number 15A (later redesignated 15B), was delivered to Cape Canaveral on November 16, 1962.

• 1961 Oct 25 - NASA Headquarters officially approved the Mercury extended range or 1-day mission program.  Spacecraft: Mercury.

  Four Mercury spacecraft were to be modified to the Mercury One Day Mission (MODM) configuration.

• - 1962 January - Aerial drop tests planned for the Mercury 1-day mission.  Spacecraft: Mercury.

  Twenty spacecraft aerial drop tests were planned for the Mercury extended range or 1-day mission. One of the prime objectives was to determine if the 63-foot ringsail main recovery parachute met all Mercury mission weight requirements. Tests were scheduled to be conducted at El Centro, California, and all tests would be land drops. This test program was designated Project Reef.

• - 1962 January - Three potential recovery areas were recommended for the Mercury extended range or 1-day mission.

  These were: Grand Turk, Midway Island, and the Japanese-Philippine Island area.

• - 1962 March - PERT system for Mercury.

  The PERT (Program Evaluation and Review Technique) reporting system became operational on an experimental basis for Mercury. The first PERT report on the Mercury 1-day mission schedule and cost analysis was issued by the Manned Spacecraft Center on April 26, 1962.

• - 1962 April - Development of an advanced Mercury suit started.  Spacecraft: Mercury Space Suit.

  Development of an advanced state-of-the-art pressure suit and helmet was started. This action was taken in preparation for the Mercury extended range or 1-day mission program. The objectives were aimed at improvements in unpressurized suit comfort, suit ventilation, pressure suit mobility, electrically heated helmet visor with additional light attenuation features, and the fabrication of a mechanical visor seal mechanism.

• 1962 Jun 26 - Mercury Project Reef  Spacecraft: Mercury.

  Project Reef, an airdrop program to evaluate the Mercury 63-foot ringsail main parachute's capability to support the higher spacecraft weight for the extended range or 1-day mission was completed. Tests indicated that the parachute qualified to support the mission.

• 1962 Jun 29 - Changes to fuel tank for the Mercury 1-day mission.  Spacecraft: Mercury.

  Engineering was completed for the spacecraft reaction control system reserve fuel tank and related hardware in support of the Mercury extended range or 1-day mission.

• - 1962 August - The first edition of the map for the Mercury 1-day mission was published.

• 1962 Aug 8 - Mercury Project Orbit  Spacecraft: Mercury.

  Spacecraft 9 (redesignated 9A) was phased into the Project Orbit program in preparation for the Mercury extended range or 1-day mission.

• 1962 Aug 11 - Mercury spacecraft reaction control system test was completed.  Spacecraft: Mercury.

  Data compiled from this test was used to evaluate the thermal and thruster configuration of the Mercury extended range or 1-day mission spacecraft.

• - 1962 August-September - Mercury spacecraft configuration changes for a one-day manned orbital mission.  Spacecraft: Mercury.

  Negotiations were completed with McDonnell for spacecraft configuration changes to support the Mercury 1-day manned orbital mission. The design engineering inspection, when the necessary modifications were listed, was held on June 7, 1962.

• 1962 Oct 9 - Mercury spacecraft 20 delivered to Cape Canaveral  Spacecraft: Mercury. Launch Vehicle: Atlas D.

  Spacecraft 20 was delivered to Cape Canaveral for the Mercury-Atlas 9 (MA-9) 1-day mission flight.

• 1962 Oct 19 - All spacecraft system tests completed for Mercury spaceraft 20.  Spacecraft: Mercury.

  McDonnell reported that all spacecraft system tests had been completed for spaceraft 20, which was allocated for the Mercury-Atlas 9 (MA-9) 1-day orbital mission.

• 1962 Oct 23 - Operation planning underway for the Mercury 1-day mission.

  Major General Leighton Davis, Department of Defense representative for Project Mercury Support Operations, reported that support operation planning was underway for the Mercury 1-day mission.

• 1962 Nov 13 - Cooper named for Mercury MA-9 1-day orbital mission  Launch Vehicle: Atlas D.

  Gordon Cooper was named as the pilot for Mercury-Atlas 9 (MA-9) 1-day orbital mission slated for April 1963. Alan Shepard, pilot of Mercury-Redstone 3 (MR-3) was designated as backup pilot.

• 1962 Nov 16 - Recovery and network support requirements for Mercury MA-9

  The Manned Spacecraft Center presented the Department of Defense with recovery and network support requirements for Mercury-Atlas 9 (MA-9) 1-day manned orbital mission.

• 1962 Nov 28 - Mercury Simulator 2 modified to the 1-day configuration.  Spacecraft: Mercury. Launch Vehicle: Atlas D.

  Mercury Simulator 2 was modified to the 1-day Mercury orbital configuration in preparation for the Mercury-Atlas 9 (MA-9) flight.

• - 1962 December - Experiments proposed for the Mercury MA-9

  Three categories of experiments were proposed for the Mercury-Atlas 9 (MA-9) manned orbital mission: (1) space flight engineering and operations, (2) biomedical experiments, and (3) space science.

  The trailing balloon, similar to the MA-7 (Carpenter flight), was to be included. ...more...

• - 1962 December 3-4 - Pre-operational conference for Mercury MA-9

  A pre-operational conference for the Mercury-Atlas 9 (MA-9) 1-day mission was held at Patrick Air Force Base, Florida, to review plans and the readiness status of the Department of Defense to support the flight. Operational experiences during the six-orbit Mercury-Atlas 8 (MA-8) mission were used as a planning guideline.

• 1962 Dec 7 - Mercury MA-9 experiment to support Apollo navigation system

  The Massachusetts Institute of Technology Instrumentation Laboratory, charged with the development of the Apollo guidance and navigation system, was in the process of studying the earth's sunset limb to determine if it could be used as a reference for making observations during the mid-course phase of the mission.

  To obtain data for this study, the laboratory requested that photographic observations ...more...

• 1962 Dec 14 - Clearance for Mercury contingency sites

  Notice was received by the Manned Spacecraft Center from the NASA Office of International Programs that diplomatic clearance had been obtained for a survey trip to be conducted at the Changi Air Field, Singapore, in conjunction with Project Mercury contingency recovery operations. Also, the United Kingdom indicated informally that its protectorate, Aden, could be used for contingency recovery aircraft for the Mercury-Atlas 9 (MA-9) 1-day mission.

• 1962 Dec 31 - Mercury MA-9 recovery and network support requirements

  After reviewing Mercury-Atlas 9 (MA-9) recovery and network support requirements, the document covering the Department of Defense support of Project Mercury was forwarded to appropriate Department of Defense operational units for indication of their capability to fulfill requirements.

• - 1963 January 10-16 - Mercury spacecraft No. 9A used in Project Orbit  Spacecraft: Mercury.

  Mercury spacecraft No. 9A was cycled through Project Orbit Mission Runs 108, 108A, and 108B in the test facilities of the McDonnell Aircraft Corporation.

  These runs were scheduled for full-scale missions and proposed to demonstrate a ...more...

• 1963 Jan 11 - Changes made to Mercury spacecraft 20  Spacecraft: Mercury.

  The Project Engineering Field Office (located at Cape Canaveral) of the Mercury Project Office reported on the number of changes made to spacecraft 20 (MA-9) as of that date after its receipt at Cape Canaveral from McDonnell in St. Louis. There were 17 specific changes, which follow: one to the reaction control system, one to the environmental control system, seven to the electrical and sequential systems, and eight to the console panels.

• 1963 Jan 14 - Ground light visibility experiment to be repeated for Mercury MA-9

  The Manned Spacecraft Center presented the proposal to NASA Headquarters that the ground light visibility experiment of the Schirra flight (MA-8) be repeated for the Mercury-Atlas 9 (MA-9) mission.

  Objectives were to determine the capability of an astronaut visually to aquire a ...more...

• 1963 Jan 17 - Mercury MA-10 a possibility.  Spacecraft: Mercury.

  Asked by a Congressional committee if NASA planned another Mercury flight after MA-9, Dr Robert C. Seamans stated, in effect, that schedules for the original Mercury program and the 1-day orbital effort were presumed to be completed in fiscal year 1963. If sufficient test data were not accumulated in the MA-9 flight, backup launch vehicles and spacecraft were available to fulfill requirements.

• 1963 Jan 21 - Mercury MA-9 simulator training plan

  After reviewing the MA-9 spacecraft system and mission rules, the Simulations Section reported the drafting of a simulator training plan for the flight.

  Approximately 20 launch reentry missions were scheduled, plus variations of these ...more...

• 1963 Jan 27 - Mercury MA-9 flight might go as many as 22 orbits.

  John A. Powers, Public Affairs Officer, Manned Spacecraft Center, told an audience of Texas Associated Press managing editors that Gordon Cooper's MA-9 flight might go as many as 22 orbits, lasting 34 hours.

• 1963 Feb 1 - Cancellation of Mercury MA-9 peroxide expulsion experiment

  Kenneth S. Kleinknecht, Manager, Mercury Project Office, reported the cancellation of a peroxide expulsion experiment previously planned for the MA-9 mission. Kleinknecht noted the zodiacal light experiment would proceed and that the astronaut's gloves were being modified to facilitate camera operation.

• 1963 Feb 5 - Delay of Mercury MA-9 schedule

  Manned Spacecraft Center officials announced a delay of the MA-9 scheduled flight data due to electrical wiring problems in the Atlas launch vehicle control system.

• 1963 Feb 12 - Objectives of the Mercury-Atlas 9 (MA-9) manned 1-day mission were published.  Launch Vehicle: Atlas D.

  This was the ninth flight of a production Mercury spacecraft to be boosted by an Atlas launch vehicle and the sixth manned United States space flight.

  According to plans, MA-9 would complete almost 22 orbits and be recovered approximately ...more...

• 1963 Feb 12 - The Manned Spacecraft Center announced a mid-May flight for Mercury-Atlas 9 (MA-9).  Launch Vehicle: Atlas D.

  Originally scheduled for April, the launch date was delayed by a decision to rewire the Mercury-Atlas flight control system, as a result of the launch vehicle checkout at the plant inspection meeting.

• - 1963 February 18-22 - Mercury Project Orbit Run 109.  Spacecraft: Mercury.

  The McDonnell Aircraft Corporation reported to the Manned Spacecraft Center on the results of Mercury Project Orbit Run 109.

  This test run completed a 100-hour full-scale simulated mission, less the reaction ...more...

• 1963 Feb 21 - Cooper, Shepard briefed on experiments for Mercury MA-9

  Gordon Cooper and Alan Shepard, pilot and backup pilot, respectively, for the Mercury-Atlas 9 (MA-9) mission, received a 1-day briefing on all experiments approved for the flight. Also at this time, all hardware and operational procedures to handle the experiments were established.

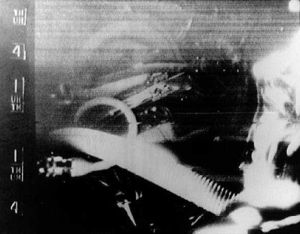

• 1963 Mar 19 - Television camera for Mercury MA-9  Spacecraft: Mercury.

  The Manned Spacecraft Center received a slow-scan television camera system, fabricated by Lear Siegler, Incorporated, for integration with the Mercury-Atlas 9 (MA-9) mission.

  This equipment, weighing 8 pounds, could be focused on the pilot or used by the ...more...

• 1963 Mar 22 - Glenn receives the Robert H. Goddard trophy

  The National Rocket Club presented to John Glenn, pilot of America's first orbital manned space flight, the Robert H. Goddard trophy for 1963 for his achievement in assisting the advance of missile, rocket, and space flight programs.

• 1963 Mar 28 - Cooper and Shepard received runs on the centrifuge for Mercury training

  For the purpose of reviewing the MA-9 acceleration profile, pilot Gordon Cooper and backup pilot Alan Shepard received runs on the Johnsville centrifuge.

• 1963 Apr 5 - Cooper and Shepard visited the Morehead Planetarium for Mercury training

  Gordon Cooper and Alan Shepard, MA-9 pilot and backup pilot, visited the Morehead Planetarium in North Carolina to review the celestial sphere model, practice star navigation, and observe a simulation of the flashing light beacon (an experiment planned for the MA-9 mission).

• 1963 Apr 9 - Tethered balloon experiment for Mercury MA-9

  Langley Research Center personnel visited Cape Canaveral to provide assistance in preparing the tethered balloon experiment for the Mercury-Atlas 9 (MA-9) mission. This work involved installing force measuring beams, soldered at four terminals, to which the lead wires were fastened.

• - 1963 April 10-11 - Recovery and egress training for Cooper and Shepard in preparation for Mercury MA-9

  Full-scale recovery and egress training was conducted for Gordon Cooper and Alan Shepard in preparation for the Mercury MA-9 mission. During the exercise, egresses were effected from the spacecraft with subsequent helicopter pickup and dinghy boarding. The deployment and use of survival equipment were also practiced.

• 1963 Apr 15 - Flight plan for Mercury MA-9

  The Manned Spacecraft Center published a detailed flight plan, and the assumption was made that the mission would be nominal, with any required changes being made by the flight director.

  Scheduled experiments, observations, and studies would be conducted in a manner ...more...

• 1963 Apr 22 - Mercury program to culminate with the 1-day mission

  Scott Carpenter told an audience at the American Institute of Aeronautics and Astronautics' Second Manned Space Flight Meeting in Dallas, Texas, that the Mercury program would culminate with the 1-day mission of Gordon Cooper.

• 1963 Apr 22 - Mercury Spacecraft 20 mated to Atlas launch vehicle  Spacecraft: Mercury. Launch Vehicle: Atlas D.

  Spacecraft 20 was moved from Hanger S at Cape Canaveral to Complex 14 and mated to Atlas launch vehicle 130-D in preparation for the Mercury-Atlas 9 (MA-9) mission. The first simulated flight test was begun immediately.

• 1963 Apr 30 - Improvements to the Mercury pressure suit for Mercury MA-9  Spacecraft: Mercury Space Suit. Launch Vehicle: Atlas D.

  A number of improvements had been made to the Mercury pressure suit for the Mercury-Atlas 9 (MA-9) flight.

  These included a mechanical seal for the helmet, new gloves with an improved inner-liner ...more...

• - 1963 May 12-19 - 1020 news staff to cover Mercury MA-9.

  Some 1,020 reporters, commentators, technicians, and others of the news media from the U.S. and several foreign countries gathered at Cape Canaveral, with another 130 at the NASA News Center in Hawaii, to cover the Mercury-Atlas 9 (MA-9) mission.

  Over the course of these days at Cape Canaveral, Western Union estimated that approximately ...more...

• 1963 May 12 - Cooper ready for Mercury MA-9 mission.

  Dr. Charles A. Berry, Chief, Aerospace Medical Operations Office, Manned Spacecraft Center, pronounced Gordon Cooper in excellent mental and physical condition for the upcoming Mercury-Atlas 9 (MA-9) mission.

• 1963 May 13 - Korolev fights excessive VVS staff at Tyuratam.  Spacecraft: Sokol SK-1.

  The VVS wants to send 55 staff to Tyuratam for the launches, but Korolev wants no more than 25. This is just possible - 11 cosmonauts, 8 engineers, and vital support staff only. Bykovskiy was to start a two day run in the hot mock-up, but it was called off due to defects with his suits - the biosensors were wired to his helmet microphone! The suit seems not even to have been tested before delivery. Alekseyev was supposed to have it ready by 9 May, now it will only be ready for use by 14 May. Gordon Cooper is scheduled for a 34 hour Mercury flight tomorrow....

• 1963 May 14 - Attempt to launch Mercury MA-9

  An attempt was made to launch Mercury-Atlas 9 (MA-9), but difficulty developed in the fuel pump of the diesel engine used to pull the gantry away from the launch vehicle. This involved a delay of approximately 129 minutes after the countdown had reached T-60 minutes. After these repairs were effected, failure at the Bermuda tracking station of a computer converter, important in the orbital insertion decision, forced the mission to be canceled at T-13 minutes. At 6:00 p.m. e.d.t., Walter C. Williams reported that the Bermuda equipment had been repaired, and the mission was rescheduled for May 15, 1963.

• 1963 May 15 - Cooper's flight scrubbed; Bukovskiy to start in Vostok 5 hot mock-up.  Spacecraft: Vostok.

  Cooper's flight was scrubbed due to a problem with the Bermuda tracking site. Bykovskiy's suit microphone failed on the second day in the hot-mock-up and he as to communicate by telephone or telegraph. The doctor's insistence that each cosmonaut spend the full duration of his planned flight in the hot mock-up is idiotic. The US practice is to simulate the active portions of the flight only. In actuality every day spent in a suit on the earth is as gruelling as three days in space.

• 1963 May 15 - Mercury contractor personnel at Cape Canaveral

  As of this date, the number of contractor personnel at Cape Canaveral directly involved in supporting Project Mercury were as follows: McDonnell, 251 persons for Contract NAS 5-59 and 23 persons for spacecraft 15B (MA-10 work); Federal Electric Corporation, 8. This report corresponded with the launch date of astronaut Gordon Cooper in the Mercury-Atlas 9 (MA-9).

• 1963 May 15 - Mercury MA-9  Crew: Cooper. Spacecraft: Mercury. Payload: Mercury SC20. Mass: 1,376 kg (3,033 lb). Launch Site: Cape Canaveral. Launch Vehicle: Atlas D. Duration: 1.43 days. Perigee: 163 km (101 mi). Apogee: 265 km (164 mi). Inclination: 32.50 deg. Period: 88.70 min.

  Final Mercury mission, Faith 7, was piloted by Astronaut L. Gordon Cooper, Jr.

• 1963 May 16 - Bykovsky's ordeal in Vostok-5 hot mock-up to be ended on third day.  Spacecraft: Vostok.

  It is decided that extending Bykovskiy's ordeal in the hot mock-up to a third day makes no sense. The IAKM doctors are utterly incompetent. Cooper has landed after a successful flight. The US is now hot on our tail in the space race.

• 1963 May 16 - Landing of Mercury MA-9

  After 22 orbits, virtually all spacecraft systems had failed, and Cooper manually fired the retrorockets and the spacecraft reentered the atmosphere, landing safely in the Pacific Ocean at 23:24 GMT, 34 hours, 19 minutes, and 49 seconds after liftoff. Cooper was reported in good condition, and this turned out to be the final Mercury flight.

• 1963 May 19 - Cooper reviewed his experiences aboard Mercury Faith 7

  On a national televised press conference, emanating from Cocoa Beach, Florida, astronaut Gordon Cooper reviewed his experiences aboard the Faith 7 during the Mercury-Atlas 9 (MA-9) mission.

  Cooper, in his discussion, proceeded systematically throughout the mission from ...more...

• 1963 May 21 - Cooper receives Medal for Mercury.

  In a White House ceremony, President John F. Kennedy presented astronaut Gordon Cooper with the NASA Distinguished Service Medal.

  Other members of the Mercury operations team receiving medals for outstanding leadership ...more...

• 1963 May 24 - Mercury spacecraft consumables never stretched

  William M. Bland, Deputy Manager, Mercury Project Office, told an audience at the Aerospace Writers' Association Convention at Dallas, Texas, that 'contrary to common belief, the Mercury spacecraft consumables have never been stretched like a rubber band to their limit in performing any of the missions.'

  He pointed out that consumables such as electrical power, coolant water, oxygen, ...more...

• 1963 May 29 - Department of Defense support of the Mercury MA-9

  The Department of Defense submitted a summary of its support of the Mercury-Atlas 9 (MA-9) mission, with a notation that the department was prepared to provide support for the MA-10 launch.

  Other than the provision of the Atlas launch vehicle, the Department of Defense ...more...

• - 1963 October 16-November 15 - Apollo CM humidity study  Spacecraft: Apollo CSM.

  Because of an electrical equipment failure on Mercury MA-9, North American began a CM humidity study.

  The company found in the crew compartment major spacecraft systems which were not ...more...

• Kamanin, N P, Skritiy kosmos, Infortext, Moscow, 1995. The diary of the Commander of the Soviet Cosmonaut Team in the 1960's - a source of great insights into the space program. Four volumes issued to date.

• NASA Report, Measurements of the astronauts' radiation exposure with nuclear emulsion on Mercury missions MA-8 and MA-9, . Accessed at: http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19670009820_1967009820.pdf. -right click to download pdfs!

• NASA Report, Flashing-Beacon Experiment for Mercury-Atlas 9 /MA-9/ Mission, . Accessed at: http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19640016501_1964016501.pdf. -right click to download pdfs!

• NASA Report, Radiation Measurements on the Ninth Mercury- Atlas Mission /MA-9/, . Accessed at: http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19650007514_1965007514.pdf. -right click to download pdfs!

• NASA Report, Mercury-Atlas 9 Flight Plan, . Accessed at: http://prdownloads.sourceforge.net/mscorbaddon/MA9_FlightPlan.pdf. -right click to download pdfs!

• NASA Report, Mercury-Atlas 9 Composite Air-to-Ground and Onboard Voice Tape Transcription, . Accessed at: http://www.jsc.nasa.gov/history/mission_trans/MA09_TE2.PDF. -right click to download pdfs!

• Grimwood, James M., Project Mercury: A Chronology, NASA Special Publication-4001.

• JPL Mission and Spacecraft Library, Jet Propulsion Laboratory, 1997. Accessed at: http://msl.jpl.nasa.gov/home.html.

• Lockheed Martin Coporation, Atlas Family Fact Sheets, September 1998.. Accessed at: http://www.lmco.com/ILS/txtmain/ils_lsysinfo.htm.

• Turnill, Reginald,, The Observer's Spaceflight Directory, Frederick Warne, London, 1978. ISBN: 0723220514. Good miniature encyclopaedia of space programs just before the shuttle started flying. More at amazon.com...

• Swenson, Grimwood, Alexander, Charles C, This New Ocean, Government Printing Office, 1966. The official version - NASA's history of the Mercury Program. Accessed at: http://www.hq.nasa.gov/office/pao/History/SP-4201/cover.htm.

• Furniss, Tim, Manned Spaceflight Log, Jane's, London, 1986. ISBN: 0710604025. Summary of all manned spaceflights up to 1986. Pre-Glasnost, so many 'war stories' of Soviet manned spaceflight are not included. More at amazon.com...

• Baker, David, The History of Manned Spaceflight, Crown, New York, 1981. The best overview of America's manned space programs up to Skylab. Information and details not available anywhere else. Unfortunately out of print and difficult to locate.

• Ertel , Ivan D; Morse , Mary Louise; et al, The Apollo Spacecraft Chronology Vol I - IV NASA SP-4009, NASA, 1966-1974. Accessed at: http://www.hq.nasa.gov/office/pao/History/SP-4009/cover.htm.

• Krebs, Gunter, Gunter's Space Page, University of Frankfurt, 1996. Accessed at: http://www.skyrocket.de/space.

• NASA Report, Mercury-Atlas 9 Postlaunch Memorandum Report, . Accessed at: http://www.jsc.nasa.gov/history/mission_trans/MA09_TEC.PDF. -right click to download pdfs!

• USAF Satellite Database, USAF Institute of Technology, 1995. Accessed at: ftp://archive.afit.af.mil/pub/space/.

• McDowell, Jonathan, Jonathan's Space Home Page, Harvard University, 1997-present. Jonathan McDowell's complete on-line listing of all objects orbited and over 20,000 rocket launches Accessed at: http://www.planet4589.org/jsr.html.
