Short Description
|
|
Gemini Lunar SRS
|
Exploded view of the Gemini Lunar Surface Rescue Spacecraft. From top to bottom: the Gemini re-entry module; the lunar ascent stage; the lunar descent stage; the lunar orbit insertion stage.
|
183 x 465
23.4 kb
Credit:
McDonnell Douglas
|
|
Gemini Lunar SRS
|
|
|
|
|
|
|
|
Gemini-Centaur
|
Gemini Docked to Centaur for Circumlunar Flight
|
350 x 88
6.3 kb
Credit:
© Mark Wade
|
|
Gemini-Centaur
|
|
|
|
|
|
|
|
Langley 4,372 kg LM
|
Langley 4,372 kg lunar lander
|
162 x 120
1.0 kb
Credit:
© Mark Wade
|
|
Langley 4,372 kg LM
|
|
|
|
|
|
|
|
Langley 1,460 kg LM
|
Langley 1,460 kg lunar lander
|
159 x 193
1.8 kb
Credit:
© Mark Wade
|
|
Langley 1,460 kg LM
|
|
|
|
|
|
|
|
Gemini Docks with LM
|
Gemini rendezvous above lunar surface with open cockpit Lunar Module after first lunar landing in 1966
|
350 x 270
19.8 kb
Credit:
© Mark Wade
|
|
Gemini Docks with LM
|
|
|
|
|
|
|
|
Gemini-Agena
|
Gemini docked to Agena
|
460 x 140
2.8 kb
Credit:
© Mark Wade
|
|
Gemini-Agena
|
|
|
|
|
|
|
|

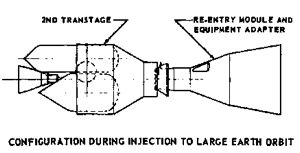

Gemini/Transtage-LEO
|
Translunar Gemini with Double Transtage - LEO Configuration
|
350 x 138
10.2 kb
Credit:
© Mark Wade
|
|
Gemini/Transtage-LEO
|
|
|
|
|
|
|
|
Gemini/Transtage-TLI
|
Translunar Gemini with Transtage - Translunar Configuration
|
437 x 223
3.5 kb
Credit:
© Mark Wade
|
|
Gemini/Transtage-TLI
|
|
|
|
|
|
|
|
Gemini LORV
|
Gemini Lunar Orbit Rescue Vehicle, studied for rescue of an Apollo crew stranded in lunar orbit. Gemini would be launched by Saturn V. Following lunar orbit insertion it would rendezvous with the disabled Apollo. The three Apollo crew members would transfer by spacewalk to a compartment in the stretched Gemini capsule. It would then boost itself on a transearth trajectory. This was rejected in favour of the more flexible Gemini Lunar Surface Rescue Vehicle.
|
350 x 246
18.7 kb
Credit:
McDonnell Douglas
|
|
Gemini LORV
|
|
|
|
|
|
|
|
Gemini Lunar SSS
|
Drawing of the Gemini Lunar Surface Survival Shelter. The shelter would be landed, unmanned, near the landing site of a stranded Apollo Lunar Module. In the event the LM ascent stage would not light to take the crew back to the Apollo CSM in lunar orbit, the two astronauts could go to the shelter and await a rescue mission. The astronaut in the CSM would return alone in the Apollo spacecraft.
|
350 x 265
17.5 kb
Credit:
McDonnell Douglas
|
|
Gemini Lunar SSS
|
|
|
|
|
|
|
|
Gemini Lunar SRS
|
Gemini Lunar Surface Rescue Spacecraft. This spacecraft would be piloted by two crew to a landing near a stranded Apollo lunar module. The extended Gemini re-entry capsule had a passenger compartment for the two rescued astronauts. The LSRS used three Lunar Module descent stages for lunar orbit insertion, lunar landing, and lunar ascent.
|
538 x 408
51.5 kb
Credit:
McDonnell Douglas
|
|
Gemini Lunar SRS
|
|
|
|
|
|
|
|
Gemini Lunar SRS
|
Alternate configuration for a Gemini Lunar Surface Rescue Vehicle. In place of 3 LM descent stages , this version uses 2 Apollo Service Modules and a repackaged LM descent stage. The first SM completes the translunar injection begun by the S-IVB stage. The second SM brakes into lunar orbit and then acts as a 'lunar crasher' stage, burning out just above the lunar surface. The third stage hovers to a landing near a stranded lunar module, and later boosts the Gemini capsule into transearth trajectory.
|
546 x 315
26.6 kb
Credit:
McDonnell Douglas
|
|
Gemini Lunar SRS
|
|
|
|
|
|
|
|
Gemini ULRV Mission
|
Mission Summary for Gemini Universal Lunar Rescue Vehicle.
|
715 x 559
9.0 kb
Credit:
© Mark Wade
|
|
Gemini ULRV Mission
|
|
|
|
|
|
|
|
Gemini-Centaur-LM
|
Gemini for lunar landing with Centaur and Langley open cockpit Lunar Module
|
632 x 143
3.9 kb
Credit:
© Mark Wade
|
|
Gemini-Centaur-LM
|
|
|
|
|
|
|
