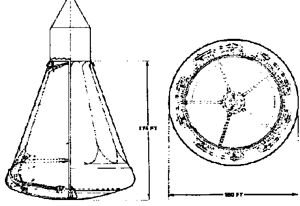

North American Aviation’s air-augmented vertical takeoff & landing single-stage-to-orbit RLV from 1963 would have used external burning ramjets which, according to preliminary studies would reduce the gross liftoff mass of a VTVL SSTO by up to 30%.

The sensitivity to air-augmentation system weight would however be quite high. A pure rocket-powered version would have a gross liftoff mass of 13,607t including a 453.6-tonne useful payload. The maximum diameter was 48.8m and the length without payload fairing was 53m. This design was initially classified by the US Department of Defense before being resurrected for Rockwell's and NASA's solar power satellite launch studies in the late 1970s.

Manufacturer: North American. LEO Payload: 453,600 kg (1,000,000 lb). Total Mass: 13,607,000 kg (29,998,000 lb). Core Diameter: 48.80 m (160.10 ft). Total Length: 53.00 m (173.00 ft).

• Bell, AAS, "Advanced Launch Vehicle Systems and Technologies", AAS 1977/vol.36/p.117.

• Baker, David, Spaceflight and Rocketry -- a Chronology, Facts on File Inc, 1996. ISBN: 0-8160-1853-7. More at amazon.com...
