N-11 Block A
|
|

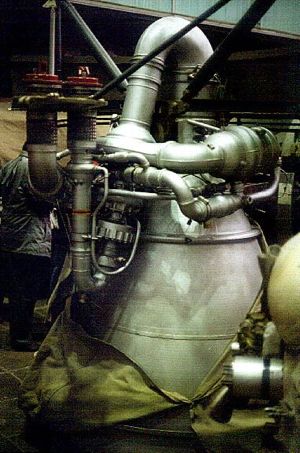

Gross Mass: 485,000 kg (1,069,000 lb). Empty Mass: 47,000 kg (103,000 lb). Thrust (vac): 11,960.000 kN (2,688,710 lbf). Isp: 330 sec. Burn time: 117 sec. Propellants: Lox/Kerosene. Isp(sl): 293 sec. Diameter: 6.80 m (22.30 ft). Span: 9.80 m (32.10 ft). Length: 20.00 m (65.00 ft). Country: Russia. No Engines: 8. Engine: NK-15V. Status: Study 1963. Derived from N1 Block B, with large number of engines and expansion ratio adjusted for sea level operation. Includes 3500 kg Stage 2-Stage 3 interstage.
Used on Launch Vehicles:
|
