Scout A
Part of Scout Family
Scout A
Scout A

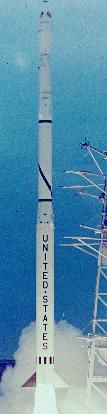

Scout A - COSPAR 1967-042
American all-solid orbital launch vehicle. All-solid low cost lightweight launch vehicle.

Status: Retired 1970. First Launch: 1965-12-22. Last Launch: 1970-08-27. Number: 11 . Payload: 122 kg (268 lb). Thrust: 513.40 kN (115,417 lbf). Gross mass: 17,850 kg (39,350 lb). Height: 25.00 m (82.00 ft). Diameter: 1.01 m (3.31 ft). Apogee: 185 km (114 mi).

LEO Payload: 122 kg (268 lb) to a 185 km orbit. Flyaway Unit Cost 1985$: 8.610 million.

Stage Data - Scout A

  • Stage 1. 1 x Algol 2. Gross Mass: 11,600 kg (25,500 lb). Empty Mass: 1,650 kg (3,630 lb). Thrust (vac): 564.245 kN (126,847 lbf). Isp: 255 sec. Burn time: 47 sec. Isp(sl): 232 sec. Diameter: 1.01 m (3.31 ft). Span: 1.01 m (3.31 ft). Length: 9.09 m (29.82 ft). Propellants: Solid. No Engines: 1. Engine: Algol 2. Status: Out of Production.
  • Stage 2. 1 x Castor 2. Gross Mass: 4,424 kg (9,753 lb). Empty Mass: 695 kg (1,532 lb). Thrust (vac): 258.915 kN (58,206 lbf). Isp: 262 sec. Burn time: 37 sec. Isp(sl): 232 sec. Diameter: 0.79 m (2.59 ft). Span: 0.79 m (2.59 ft). Length: 6.04 m (19.81 ft). Propellants: Solid. No Engines: 1. Engine: TX-354-3. Status: In Production.
  • Stage 3. 1 x Antares 2. Gross Mass: 1,400 kg (3,000 lb). Empty Mass: 300 kg (660 lb). Thrust (vac): 93.094 kN (20,928 lbf). Isp: 293 sec. Burn time: 36 sec. Isp(sl): 233 sec. Diameter: 0.78 m (2.55 ft). Span: 0.78 m (2.55 ft). Length: 2.90 m (9.50 ft). Propellants: Solid. No Engines: 1. Engine: X-259. Status: Out of Production.
  • Stage 4. 1 x Altair 2. Gross Mass: 275 kg (606 lb). Empty Mass: 37 kg (81 lb). Thrust (vac): 22.241 kN (5,000 lbf). Isp: 266 sec. Burn time: 28 sec. Isp(sl): 242 sec. Diameter: 0.64 m (2.09 ft). Span: 0.64 m (2.09 ft). Length: 2.53 m (8.30 ft). Propellants: Solid. No Engines: 1. Engine: X-258. Status: Out of Production.

Family: all-solid, orbital launch vehicle. Country: USA. Spacecraft: Transit, Radio Test Spacecraft, Ariel, Owl. Launch Sites: Vandenberg, Vandenberg SLC5. Stages: Algol 2, Altair 2, Antares 2, Castor 2. Agency: Vought. More at: 8610.


Photo Gallery

ScoutScout
Credit: © Mark Wade



1957 July - . LV Family: Scout. Launch Vehicle: Scout A.
  • Beginning of the Scout launch vehicle concept. - . Nation: USA. A study was initiated by the Langley Aeronautical Laboratory on the use of solid-fuel upper stages to achieve a payload orbit with as simple a launch vehicle as possible. This was the beginning of the Scout test-vehicle concept..

1959 March 1 - . LV Family: Scout. Launch Vehicle: Scout A.
  • Scout development begun. - . Nation: USA. "Poor man's rocket," Scout, was jointly announced by NASA and AF. The concept of Scout originated at Langley Research Center in 1958, based upon extensive experience with staged solid-propellant rockets..

1961 May 5 - . LV Family: Scout. Launch Vehicle: Scout A.
  • Scout to evaluate the Mercury tracking system. - . Nation: USA. Program: Mercury. Spacecraft Bus: Radio Test Spacecraft. Spacecraft: Radio Test Spacecraft. A document was issued regarding use of a Scout test vehicle to evaluate the performance of the Mercury tracking and real-time computing system. NASA Headquarters tentatively approved the plan on May 24, 1961..

1961 June 13 - . LV Family: Scout. Launch Vehicle: Scout A.
  • Mercury-Scout instrumentation system. - . Nation: USA. Program: Mercury. Spacecraft Bus: Radio Test Spacecraft. Spacecraft: Radio Test Spacecraft. The Space Task Group forwarded to NASA Headquarters the details for the Mercury-Scout instrumentation system. This mission was to check the operational effectiveness of the Mercury global tracking network..

1961 October 29 - . LV Family: Scout. Launch Vehicle: Scout A.
  • Mercury-Scout announcement - . Nation: USA. Program: Mercury. Spacecraft Bus: Radio Test Spacecraft. Spacecraft: Radio Test Spacecraft. An announcement was made that a Mercury-Scout launch would be made to verify the readiness of the world-wide Mercury Tracking network to handle further orbital flights..

1965 December 22 - . 04:33 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC5. LV Family: Scout. Launch Vehicle: Scout A.
  • Transit O-6 - . Mass: 60 kg (132 lb). Nation: USA. Agency: USN. Program: Transit. Class: Navigation. Type: Navigation satellite. Spacecraft Bus: Transit. Spacecraft: Transit. USAF Sat Cat: 1864 . COSPAR: 1965-109A. Apogee: 1,059 km (658 mi). Perigee: 891 km (553 mi). Inclination: 89.1000 deg. Period: 104.60 min. Spacecraft built by Naval Avionics Facility, but refurbished by APL. Operated for 7 to 11 months, but then failed due to poor workmanship of NAFI components..

1966 January 28 - . 17:06 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC5. LV Family: Scout. Launch Vehicle: Scout A.
  • Transit O-7 - . Mass: 50 kg (110 lb). Nation: USA. Agency: USN. Program: Transit. Class: Navigation. Type: Navigation satellite. Spacecraft Bus: Transit. Spacecraft: Transit. USAF Sat Cat: 1952 . COSPAR: 1966-005A. Apogee: 1,180 km (730 mi). Perigee: 850 km (520 mi). Inclination: 90.0000 deg. Period: 105.40 min. Naval Avionics Facility-assembled production spacecraft. Failed after a few weeks operation..

1966 March 26 - . 03:31 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC5. LV Family: Scout. Launch Vehicle: Scout A.
  • Transit O-8 - . Mass: 50 kg (110 lb). Nation: USA. Agency: USN. Program: Transit. Class: Navigation. Type: Navigation satellite. Spacecraft Bus: Transit. Spacecraft: Transit. USAF Sat Cat: 2119 . COSPAR: 1966-024A. Apogee: 1,099 km (682 mi). Perigee: 879 km (546 mi). Inclination: 89.7000 deg. Period: 104.90 min. Spacecraft built by Naval Avionics Facility, but refurbished by APL. Operated for 7 to 11 months, but then failed due to poor workmanship of NAFI components..

1966 May 19 - . 02:27 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC5. LV Family: Scout. Launch Vehicle: Scout A.
  • Transit O-9 - . Mass: 50 kg (110 lb). Nation: USA. Agency: USN. Program: Transit. Class: Navigation. Type: Navigation satellite. Spacecraft Bus: Transit. Spacecraft: Transit. USAF Sat Cat: 2176 . COSPAR: 1966-041A. Apogee: 951 km (590 mi). Perigee: 833 km (517 mi). Inclination: 90.1000 deg. Period: 102.80 min. Spacecraft built by Naval Avionics Facility, but refurbished by APL. Operated for 7 to 11 months, but then failed due to poor workmanship of NAFI components..

1966 August 18 - . 02:25 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC5. LV Family: Scout. Launch Vehicle: Scout A.
  • Transit O-10 - . Mass: 58 kg (127 lb). Nation: USA. Agency: USN. Program: Transit. Class: Navigation. Type: Navigation satellite. Spacecraft Bus: Transit. Spacecraft: Transit. USAF Sat Cat: 2401 . COSPAR: 1966-076A. Apogee: 1,089 km (676 mi). Perigee: 1,038 km (644 mi). Inclination: 88.9000 deg. Period: 106.50 min.

    Spacecraft built by Naval Avionics Facility, but refurbished by APL. Only partially operational due to a decrease in the number of solar cells available for charging the batteries after thermal working of the solar cell interconnections in day/night cycles.


1967 April 14 - . 03:25 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC5. LV Family: Scout. Launch Vehicle: Scout A.
  • Transit O-12 - . Mass: 60 kg (132 lb). Nation: USA. Agency: USN. Program: Transit. Class: Navigation. Type: Navigation satellite. Spacecraft Bus: Transit. Spacecraft: Transit. USAF Sat Cat: 2754 . COSPAR: 1967-034A. Apogee: 1,064 km (661 mi). Perigee: 1,037 km (644 mi). Inclination: 90.1000 deg. Period: 106.20 min. First APL-built Transit Operational satellite. Operational life of this and subsequent Transits was over 14 years..

1967 May 5 - . 16:00 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC5. LV Family: Scout. Launch Vehicle: Scout A.
  • Ariel 3 - . Payload: UK 3 (UK-E). Mass: 90 kg (198 lb). Nation: UK. Agency: SRC. Class: Technology. Type: Navigation technology satellite. Spacecraft Bus: Ariel. Spacecraft: Ariel. Decay Date: 1970-12-14 . USAF Sat Cat: 2773 . COSPAR: 1967-042A. Apogee: 604 km (375 mi). Perigee: 499 km (310 mi). Inclination: 80.6000 deg. Period: 95.60 min. Spacecraft engaged in research and exploration of the upper atmosphere or outer space (US Cat B). .

1967 May 18 - . 09:05 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC5. LV Family: Scout. Launch Vehicle: Scout A.
  • Transit O-13 - . Mass: 60 kg (132 lb). Nation: USA. Agency: USN. Program: Transit. Class: Navigation. Type: Navigation satellite. Spacecraft Bus: Transit. Spacecraft: Transit. USAF Sat Cat: 2807 . COSPAR: 1967-048A. Apogee: 1,088 km (676 mi). Perigee: 1,059 km (658 mi). Inclination: 89.6000 deg. Period: 106.70 min. Operational life over 20 years..

1967 September 25 - . 08:25 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC5. LV Family: Scout. Launch Vehicle: Scout A.
  • Transit O-14 - . Mass: 60 kg (132 lb). Nation: USA. Agency: USN. Program: Transit. Class: Navigation. Type: Navigation satellite. Spacecraft Bus: Transit. Spacecraft: Transit. USAF Sat Cat: 2965 . COSPAR: 1967-092A. Apogee: 1,099 km (682 mi). Perigee: 1,030 km (640 mi). Inclination: 89.2000 deg. Period: 106.50 min.

1968 March 2 - . 03:55 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC5. LV Family: Scout. Launch Vehicle: Scout A.
  • Transit O-18 - . Mass: 60 kg (132 lb). Nation: USA. Agency: USN. Program: Transit. Class: Navigation. Type: Navigation satellite. Spacecraft Bus: Transit. Spacecraft: Transit. USAF Sat Cat: 3133 . COSPAR: 1968-012A. Apogee: 1,130 km (700 mi). Perigee: 1,014 km (630 mi). Inclination: 90.0000 deg. Period: 106.70 min. First RCA-built Transit..

1970 August 27 - . 13:23 GMT - . Launch Site: Vandenberg. Launch Complex: Vandenberg SLC5. LV Family: Scout. Launch Vehicle: Scout A.
  • Transit O-19 - . Mass: 18 kg (39 lb). Nation: USA. Agency: USN. Program: Transit. Class: Navigation. Type: Navigation satellite. Spacecraft Bus: Transit. Spacecraft: Transit. USAF Sat Cat: 4507 . COSPAR: 1970-067A. Apogee: 1,201 km (746 mi). Perigee: 946 km (587 mi). Inclination: 90.0000 deg. Period: 106.70 min. The last Scout booster to be launched by an all-military crew was fired from Vandenberg AFB. Future Scout operations would be conducted by contractor launch teams under Air Force technical management. .
